  13. IEC Control Relay, 2NO, 120VAC, 10A

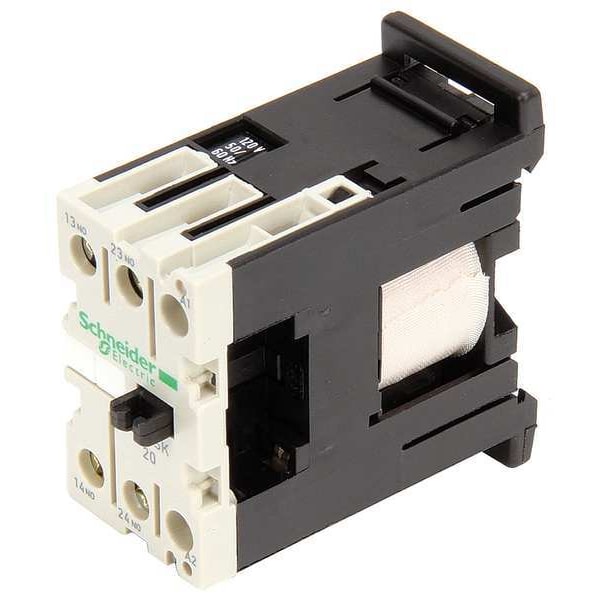

Schneider Electric IEC Control Relay, 2NO, 120VAC, 10A CA2SK20G7 - main

IEC Control Relay, 2NO, 120VAC, 10A

  • Mfr # CA2SK20G7

  • Zoro # G2976897

product price: $71.69
/ea

Key Features

Item - Relay
IEC Style Control Relay
AC Contact Rating - Relay
10A @ 120/240/480/600V
DC Contact Rating - Relay
2.00A @ 125/250/600V
Number of Pins - Relay
6
Contact Form - Relay
(2) SPST-NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CA2SK20G7
Zoro #
G2976897
UPC #
785901866718
Country of Origin
Czechia

Dimensions

Body Width - Relay
1.1 in
Body Height - Relay
2.2 in
Overall Height - Relay
2.28 in
Body Depth - Relay
2.4 in
Height
56 mm
Width
27 mm
Depth
55.5 mm
Body Height
2.2 in
Overall Height
2.2 in
Body Depth
2.19 in
Body Width
1.06 in

Details

Item - Relay
IEC Style Control Relay
Coil Volts
120V AC
AC Contact Rating - Relay
10A @ 120/240/480/600V
DC Contact Rating - Relay
2.00A @ 125/250/600V
Number of Pins - Relay
6
Contact Form - Relay
(2) SPST-NO
Mounting - Relay
DIN Rail, Surface
Response Time
6 to 8 msec (Coil De-Energisation and NO Opening), 7 to 14 msec (Coil Energisation and NO Closing), 8 to 10 msec (Coil De-Energisation and NC Closing), 8 to 16 msec (Coil Energisation and NC Opening)
Coil Rating
30VA Inrush, 4.5VA Sealed
Contact Amp Rating (Resistive)
10A
Contact Form
2NO
Hz - Electrical
50 Hz, 60 Hz
Standards
BS, cULus Listed, IEC, NF C, RoHS Compliant, VDE Approved
Hz
50/60
Contact Material
Silver Nickel
Mounting
Din Rail/Panel
Item
IEC Control Relay
Power Consumption - Relay
4.5 VA
Control Circuit Voltage Limits
drop-out 0.2...0.75 Uc 50°C) || operational 0.85...1.1 Uc 50°C)
[Ue] Rated Operational Voltage
<= 690 V <= 400 Hz
Product Name
TeSys CASK
Control Circuit Type
AC 50/60 Hz
Operating Altitude
6561.68 ft (2000 m) without derating
Hold-In Power Consumption In Va
4.2-4.2 VA 20°C)
Ambient Air Temperature For Operation
-20-50°C
Inrush Power In Va
16-16 VA 20°C)
Device Short Name
CA2SK
[Ui] Rated Insulation Voltage
690 V IEC 60947 || 690 V VDE 0110 group C || 690 V BS 5424 || 690 V UL 508 || 690 V CSA C22.2 No 14
[Uc] Control Circuit Voltage
120 V AC 50/60 Hz
Utilisation Category
DC-13 || AC-15
Range
TeSys
Product Or Component Type
control relay
Product Certifications
CB Scheme || cULus || EAC || CE || UKCA
Contactor Application
control circuit
Tightening Torque
0.8 N.m screw clamp terminals pozidriv No 1
Heat Dissipation
1.4-1.4 W
Connections - Terminals
screw clamp terminals 1 1.5-6 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.5-6 mm²flexible without cable end || screw clamp terminals 1 0.35-6 mm²flexible with cable end || screw clamp terminals 2 0.35-1.5 mm²flexible with cable end || screw clamp terminals 2 0.35-2.5 mm²flexible without cable end
[Ith] Conventional Free Air Thermal Current
10 A 55°C
Maximum Operating Rate
1200 cyc/h
Ip Degree Of Protection
IP2X
Mounting Support
rail || plate
Protective Treatment
TC IEC 60068
Associated Fuse Rating
10 A gL VDE 0660 || 10 A gL IEC 60947
Pole Contact Composition
2 NO
Operating Time
6...8 ms coil de-energisation and NO opening || 7...14 ms coil energisation and NO closing || 8...10 ms coil de-energisation and NC closing || 8...16 ms coil energisation and NC opening
Mechanical Durability
10 Mcycles
Ambient Air Temperature For Storage
-50-70°C
Input Voltage
120V AC
Relay Style
IEC
Compatible with Series
TeSys SK Mini Control Relays
Electrical Connection
Screw Clamp
Contact Rating (AC)
10 A @ 120/240/480/600V
Current Rating
10 A
Number of Pins
6
Power Consumption
4.5 VA
Frequency
50/60 Hz
Maximum Operating Temperature
122 Degrees F
Mounting Style
DIN Rail
Weight
0.29 lb
Contact Rating (DC)
2 A @ 125/250/600V
Coil Voltage
120V AC
Minimum Operating Temperature
-4 Degrees F
IP Rating
IP2X
Conventional Free Air Thermal Current
10 A (at 131°F (55°C))
Rated Operational Voltage
Less than or Equal to 690 V Less than or Equal to 400 Hz
Rated Insulation Voltage
690 V IEC 60947; 690 V VDE 0110 group C; 690 V BS 5424; 690 V UL 508; 690 V CSA C22.2 No 14

Description

IEC Control Relay, Current Rating 10 A, Contact Form 2NO, Contact Rating (DC) 2 A @ 125/250/600V, Coil Voltage 120V AC, Contact Rating (AC) 10 A @ 120/240/480/600V, Relay Style IEC, Electrical Connection Screw Clamp, Mounting Style DIN Rail, Power Consumption 4.5 VA, IP Rating IP2X, Compatible with Series TeSys SK Mini Control Relays, Maximum Operating Temperature 122 Degrees F, Frequency 50/60 Hz, Body Depth 2.19 in, Body Height 2.2 in, Body Width 1.06 in, Contact Material Silver Nickel
