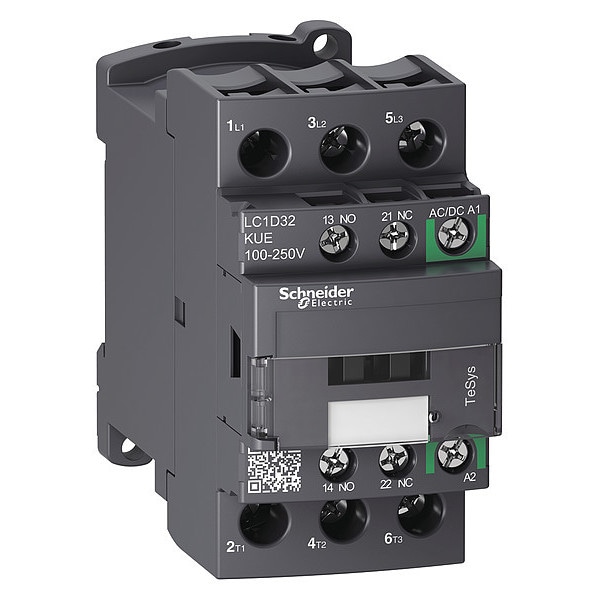

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D32KUE

  • Zoro # G6576278

product price:
$
220.35
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
50 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D32KUE
Zoro #
G6576278
UPC #
00785901965800
Country of Origin
Korea, Republic of
Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
50 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
HP @ 3 Phase - 575V
25 hp
Frame / Series / Class / Code
TeSys
Reversing
No
Enclosure NEMA Rating
No Enclosure
Series
TeSys Deca
Rated Breaking Capacity
550 A @ 440V
Fire Rating
UL 94 V1
Watts Loss
1.1W
Hold VA
1.6 VA
Application
Motor Control, Resistive Load
Environmental Attributes
Mercury Free, Pollution Degree 3
Switching Current
5 mA (Signalling Circuit)
Impulse Withstand Voltage
6 kV
Mechanical Durability
15 Mcycles
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Switching Voltage
17 V (Signalling Circuit)
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Signalling Circuit Frequency
25 to 400 Hz
Impedance
2 mOhm
Features
Built-In Bi-Directional Peak Limiting
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
IP Rating
IP20
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Max. Operating Watts
7.5 kW (at 220 to 230V AC 50 Hz AC-3), 15 kW (at 380 to 400V AC 50 Hz AC-3), 15 kW (at 415V AC 50 Hz AC-3), 15 kW (at 440V AC 50 Hz AC-3), 18.5 kW (at 500V AC 50 Hz AC-3), 18.5 kW (at 660 to 690V AC 50 Hz AC-3), 7.5 kW (at 220 to 230V AC 50 Hz AC-3e), 15 kW (at 380 to 400V AC 50 Hz AC-3e), 15 kW (at 415V AC 50 Hz AC-3e), 15 kW (at 440V AC 50 Hz AC-3e), 18.5 kW (at 500V AC 50 Hz AC-3e), 18.5 kW (at 660 to 690V AC 50 Hz AC-3e)
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Net Weight
0.438 kg
Electrical Durability
2.1 Mcycles (29 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V); 2.1 Mcycles (29 A, AC-3e, Less than 440 V)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
Non-Overlap Time
1.5 ms
Rated Insulation Volts
690V
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Includes Protective Cover
Yes
Inrush VA
25 VA
Overvoltage Category
CAT III
Operating Speed
3600 cycles per hr
Horsepower @ Three Phase - 480V AC
20 hp
Horsepower @ Three Phase - 600V AC
25 hp
Electrical Operating Durability
2,100,000, 900,000
Frequency
50/60 Hz
Number of Normally Open Main Contacts
3
Contactor Style
IEC
Mounting Style
DIN Rail, Plate
Maximum Voltage Rating
690V AC
Phase
Three
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Three Phase - 240V AC
10 hp
Full Load Current - Inductive
32 A
Full Load Current - Resistive
50 A
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 240V AC
5 hp
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
No Enclosure
Resistance Properties
Fire Resistant
Mechanical Operating Durability
15,000,000
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Single Phase - 120V AC
2 hp
Includes Auxiliary Contacts
Yes
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing electrical switching device (TeSys Deca series) rated for controlling motor and resistive loads within specified parameters. It operates with a coil voltage of 100–250 V AC/DC as specified to energize or de-energize the main contacts and features two auxiliary contacts (1NO/1NC) for signaling or control circuits. The unit employs screw clamp terminals and is rated for operation at voltages up to 690 V within the specified ratings, with a 50/60 Hz operating capability. It does not include a surge suppressor or enclosure; compatibility should be verified for specific applications.

Key features

  • Poles: 3; Reversing: Non-Reversing; Phase: Three
  • Coil voltage: 100–250 V AC/DC
  • Auxiliary contacts: 2 total (1NO/1NC)
  • Electrical connections: Screw Clamp Terminals
  • Enclosure: No Enclosure; IP20
  • Series: TeSys Deca
  • Max voltage: 690 V
  • Power/current ratings: Resistive up to 50 A; Inductive up to 32 A under standard test conditions
  • Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
  • Fire rating: UL 94 V1
  • Mechanical/Electrical durability: 15 Mcycles (mechanical); 2,100,000 cycles (electrical)
  • Dimensions (approx.): Depth 3.62 in; Height 3.35 in; Width 1.77 in
  • Weight: 0.438 kg
  • Other: Impulse withstand voltage: Up to 6 kV according to testing standards; Embedded surge suppressor: No; Maximum operating temperature: 140 °F; Max. Temperature: 850 °C
