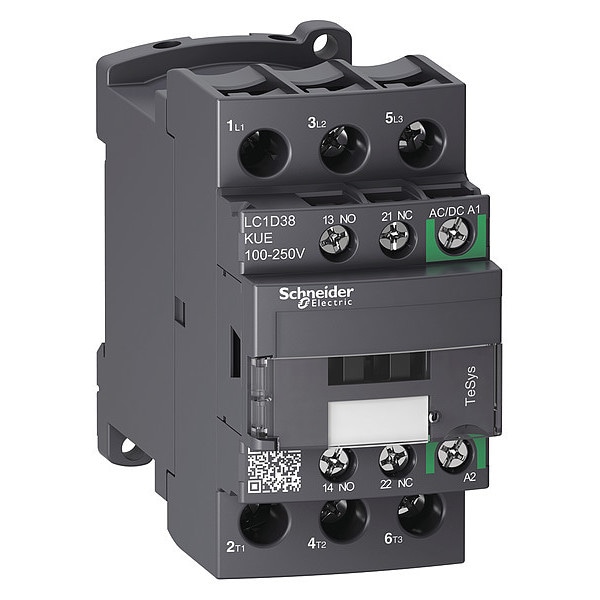

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D38KUE

  • Zoro # G6531968

product price:  $167.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
38 A
Full Load Amps-Resistive
50 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC1D38KUE
Zoro #
G6531968
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Overall Depth
3.62 in
Overall Height
3.35 in
Overall Width
1.77 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Number of Poles
3
Full Load Amps-Inductive
38 A
Full Load Amps-Resistive
50 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Reversing
No
Enclosure NEMA Rating
No Enclosure
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 575V
25 hp
Series
TeSys Deca
IP Rating
IP20
Mounting Style
DIN Rail, Plate
Contactor Style
IEC
Horsepower @ Three Phase - 600V AC
25 hp
Full Load Current - Resistive
50 A
Horsepower @ Three Phase - 240V AC
10 hp
Full Load Current - Inductive
38 A
Horsepower @ Single Phase - 240V AC
5 hp
Phase
Three
Horsepower @ Three Phase - 208V AC
10 hp
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
15,000,000
Electrical Operating Durability
1,800,000, 900,000
Maximum Voltage Rating
690V AC
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 480V AC
20 hp
NEMA Enclosure Rating
No Enclosure
Includes Auxiliary Contacts
Yes
Horsepower @ Single Phase - 120V AC
2 hp
Minimum Operating Temperature
-40 Degrees F
Embedded Surge Suppressor
No
Resistance Properties
Fire Resistant, Insulation Resistant
Frequency
50/60 Hz
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
Impulse Withstand Voltage
6 kV
Signalling Circuit Frequency
25 to 400 Hz
Overvoltage Category
CAT III
Max. Operating Watts
9 kW (at 220 to 230V AC 50 Hz AC-3), 18.5 kW (at 380 to 400V AC 50 Hz AC-3), 18.5 kW (at 415V AC 50 Hz AC-3), 18.5 kW (at 440V AC 50 Hz AC-3), 18.5 kW (at 500V AC 50 Hz AC-3), 18.5 kW (at 660 to 690V AC 50 Hz AC-3), 9 kW (at 220 to 230V AC 50 Hz AC-3e), 18.5 kW (at 380 to 400V AC 50 Hz AC-3e), 18.5 kW (at 415V AC 50 Hz AC-3e), 18.5 kW (at 440V AC 50 Hz AC-3e), 18.5 kW (at 500V AC 50 Hz AC-3e), 18.5 kW (at 660 to 690V AC 50 Hz AC-3e)
Environmental Attributes
Mercury Free, Pollution Degree 3
Net Weight
0.442 kg
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Electrical Durability
1.8 Mcycles (35 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V); 1.8 Mcycles (35 A, AC-3e, Less than 440 V)
Watts Loss
1.1W
Mechanical Durability
15 Mcycles
Inrush VA
25 VA
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Switching Current
5 mA (Signalling Circuit)
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 60 A (at 40°C for 10 min Power Circuit), 150 A (at 40°C for 1 min Power Circuit), 310 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit)
Rated Insulation Volts
690V
Hold VA
1.6 VA
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Includes Protective Cover
Yes
Operating Speed
3600 cycles per hr
Features
Built-In Bi-Directional Peak Limiting
Non-Overlap Time
1.5 ms
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Switching Voltage
17 V (Signalling Circuit)
Application
Motor Control, Resistive Load
Impedance
2 mOhm
Rated Breaking Capacity
550 A @ 440V
Fire Rating
UL 94 V1
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing IEC-style device with a coil rated for operation within the specified voltage ranges (100–250 V AC/DC). It includes two auxiliary contacts (1 NO and 1 NC) and three normally open main contacts. Wiring is via screw clamp terminals, and the unit includes a protective cover; enclosure rating: IP20. It is part of the TeSys Deca series and intended for use in motor control and resistive-load applications when installed according to applicable standards.

Poles: 3; Main Contacts: 3 NO

  • Auxiliary Contacts: 2 (1 NO / 1 NC)
  • Reversing: Non-Reversing
  • Coil Voltage: 100–250 V AC/DC
  • Rated Voltage: 690 V AC
  • Full Load Current: up to 50 A (resistive loads) under specified conditions
  • Rated Making Capacity: has a rated making capacity as specified under standard testing conditions
  • Frequency: 50/60 Hz
  • Electrical Connection: Screw Clamp Terminals
  • Mounting: DIN Rail, Plate; Mounts On: Plate, Rail
  • Enclosure/IP Rating: IP20
  • Protective Cover: Yes; Embedded Surge Suppressor: No
  • Impulse Withstand: tested for impulse withstand voltage of up to 6 kV under laboratory conditions
  • Hold VA: 1.6 VA; Inrush VA: 25 VA
  • Durability: designed durability based on standardized testing procedures; actual performance may vary depending on application
  • Dimensions (H×W×D): 3.35 in × 1.77 in × 3.62 in
  • Net Weight: 0.442 kg
  • Series: TeSys Deca; Standards: UL Listed, EN/IEC 60947-4-1, EN/IEC 60947-5-1
  • Fire Rating: UL 94 V1; Overvoltage Category: CAT III
  • Phase: Three
