- MFR #
- LC2D25KUE
- Zoro #
- G6033382
- UPC #
- -
- Country of Origin
- Korea, Republic of
- Item

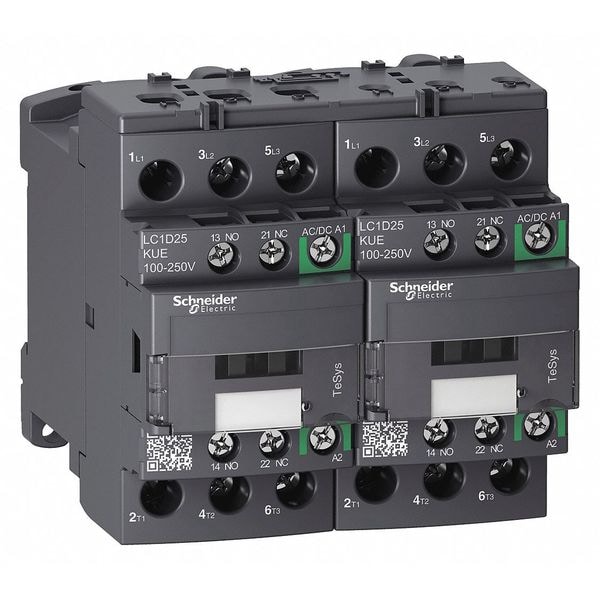

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 100V-250V AC/DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 25 A
- Full Load Amps-Resistive
- 40 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- Frame / Series / Class / Code
- TeSys
- Enclosure NEMA Rating
- No Enclosure
- Reversing
- Yes
- HP @ 3 Phase - 575V
- 20 hp
- Series
- TeSys Deca
- IP Rating
- IP20
- NEMA Enclosure Rating
- No Enclosure
- Contactor Style
- IEC
- Electrical Operating Durability
- 2,000,000, 900,000
- Horsepower @ Three Phase - 240V AC
- 7 1/2 hp
- Number of Normally Open Main Contacts
- 3
- Maximum Voltage Rating
- 690V AC
- Embedded Surge Suppressor
- No
- Includes Auxiliary Contacts
- Yes
- Horsepower @ Three Phase - 600V AC
- 20 hp
- Horsepower @ Three Phase - 480V AC
- 15 hp
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Mechanical Operating Durability
- 15,000,000
- Horsepower @ Single Phase - 120V AC
- 2 hp
- Mounting Style
- DIN Rail, Plate
- Frequency
- 50/60 Hz
- Horsepower @ Three Phase - 208V AC
- 7 1/2 hp
- Full Load Current - Inductive
- 25 A
- Horsepower @ Single Phase - 240V AC
- 3 hp
- Minimum Operating Temperature
- -40 Degrees F
- Full Load Current - Resistive
- 40 A
- Maximum Operating Temperature
- 140 Degrees F
- Switching Current
- 5 mA (Signalling Circuit)
- Inrush VA
- 25 VA
- Mechanical Durability
- 15 Mcycles
- Overvoltage Category
- CAT III
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Rated Short-Time Withstand Current
- 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Non-Overlap Time
- 1.5 ms
- Fire Rating
- UL 94 V1
- Impedance
- 2 mOhm
- Net Weight
- 0.913 kg
- Application
- Motor Control, Resistive Load
- Environmental Attributes
- Mercury Free, Pollution Degree 3
- Operating Time
- 45 to 55 ms (Closing), 20 to 90 ms (Opening)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Rated Breaking Capacity
- 450 A @ 440V
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Features
- Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
- Includes Protective Cover
- Yes
- Shock Resistance
- 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)
- Rated Insulation Volts
- 690V
- Operating Speed
- 3600 cycles per hr
- Switching Voltage
- 17 V (Signalling Circuit)
- Max. Operating Watts
- 5.5 kW (at 220 to 230V AC 50 Hz), 11 kW (at 380 to 400V AC 50 Hz), 11 kW (at 415V AC 50 Hz), 11 kW (at 440V AC 50 Hz), 15 kW (at 500V AC 50 Hz), 15 kW (at 660 to 690V AC 50 Hz)
- Electrical Durability
- 2 Mcycles (21 A, AC-3, Less than 440 V); 0.9 Mcycles (40 A, AC-1, Less than 440 V)
- Tightening Torque
- 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
- Control Circuit Voltage Limits
- Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
- Fuse Amps
- 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)
- Hold VA
- 1.6 VA
- Impulse Withstand Voltage
- 6 kV
- Watts Loss
- 1.1W
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit)
