  7. IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp

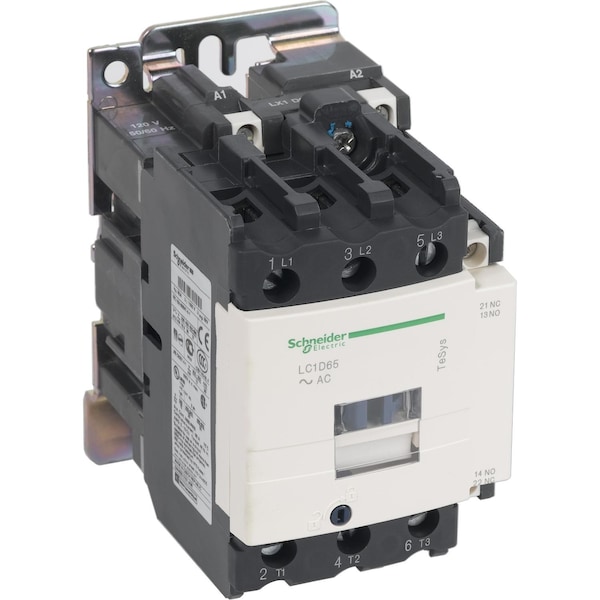

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp LC1D65F7 - main

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D65F7

  • Zoro # G0850328

product price:  $549.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
110V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC1D65F7
Zoro #
G0850328
UPC #
785901207696
Country of Origin
Czechia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
176 mm
Overall Height
127 mm
Overall Width
85 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
110V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Standards
EN 60947-5-1, UL 508, CSA C22.2 No 14, IEC 60947-5-1, EN 60947-4-1, CCC, GOST, CSA, RINA, LROS, BV, GL, UL, UKCA, DNV
HP @ 3 Phase - 575V
50 hp
Series
LC1D
Application
Motor Control, Resistive Load
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Operating Time
12 to 26 ms (Closing), 20 ms (Opening)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Switching Voltage
17 V (Control Circuit)
Fuse Amps
125 A (Type 2 Power Circuit), 160 A (Type 1 Power Circuit), 10 A (Control Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free
Rated Making Capacity
140 A (AC Control Circuit), 1000 A @ 440V (Power Circuit), 250 A (DC Control Circuit)
Insulation Resistance Range
Greater Than 10 Mohms (Control Circuit)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Impulse Withstand Voltage
8 kV
Non-Overlap Time
1.5 ms
Inrush VA
160 VA
Rated Breaking Capacity
1000 A @ 440V
Max. Operating Watts
11 kW (at 400V AC 50 Hz AC-4), 30 kW (at 380 to 400V AC 50 Hz AC-3), 37 kW (at 500V AC 50 Hz AC-3), 37 kW (at 660 to 690V AC 50 Hz AC-3), 18.5 kW (at 220 to 230V AC 50 Hz AC-3), 30 kW (at 415V AC 50 Hz AC-3), 37 kW (at 1000V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 380 to 400V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz AC-3e), 37 kW (at 660 to 690V AC 50 Hz AC-3e), 18.5 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 415V AC 50 Hz AC-3e), 37 kW (at 1000V AC 50 Hz AC-3e), 30 kW (at 380 to 400V AC 50 Hz), 30 kW (at 440V AC 50 Hz)
Fire Rating
UL 94 V1
Overvoltage Category
CAT III
Mechanical Durability
10 Mcycles
Control Circuit Voltage Limits
Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz); Operational DC: 0.75 to 1.25 Uc (at -40 to 60°C); Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C)
IP Rating
IP2X
Rated Insulation Volts
600/690V
Operating Speed
3600 cycles per hr
Hold VA
15 VA
Switching Current
5 mA (Control Circuit)
Includes Protective Cover
Yes
Tightening Torque
1.7 Nm (Control Circuit), 5 Nm (Power Circuit)
Net Weight
2.185 kg
Full Load Current - Resistive
80 A
Horsepower @ Three Phase - 240V AC
20 hp
Horsepower @ Single Phase - 240V AC
10 hp
Horsepower @ Three Phase - 480V AC
40 hp
Horsepower @ Three Phase - 208V AC
20 hp
Full Load Current - Inductive
65 A
Conventional Free Air Thermal Current
80 A (at 60°C Power Circuit), 10 A (at 60°C Control Circuit)
Mounting Style
Plate, Rail
Maximum Voltage Rating
690V AC

Description

The item is an IEC Magnetic Contactor (3-pole, non-reversing) rated for operation at 110 V AC coil and 690 V AC rated voltage, with 1NC/1NO auxiliary contacts. It uses screw clamp terminals and is sized for motor control and resistive loads. Its dimensions are 85 mm wide, 127 mm high, and 176 mm deep, with a net weight of 2.185 kg.

Poles: 3

  • Auxiliary contact form: 1NC/1NO
  • Coil voltage: 110 V AC
  • Rated voltage: 690 V AC
  • Series: LC1D; Reversing: Non-Reversing
  • Mounting/Connection: Plate, Rail; Screw Clamp terminals
  • Dimensions and weight: 85 mm W x 127 mm H x 176 mm D; 2.185 kg
  • IP rating and flammability rating: IP2X; meets the UL 94 V1 flammability standard (note: does not imply safety guarantee)
  • Full load current: Inductive 65 A; Resistive 80 A
  • Rated making capacity: 140 A (AC Control Circuit); 1000 A @ 440 V (Power Circuit); 250 A (DC Control Circuit)
  • Includes protective cover: Yes
  • Environmental attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free
  • Impulse withstand voltage: 8 kV
  • Max operating watts: 11 kW (at 400 V AC, 50 Hz, AC-4)
  • Standards: EN 60947-5-1, UL 508, IEC 60947-5-1, EN 60947-4-1
