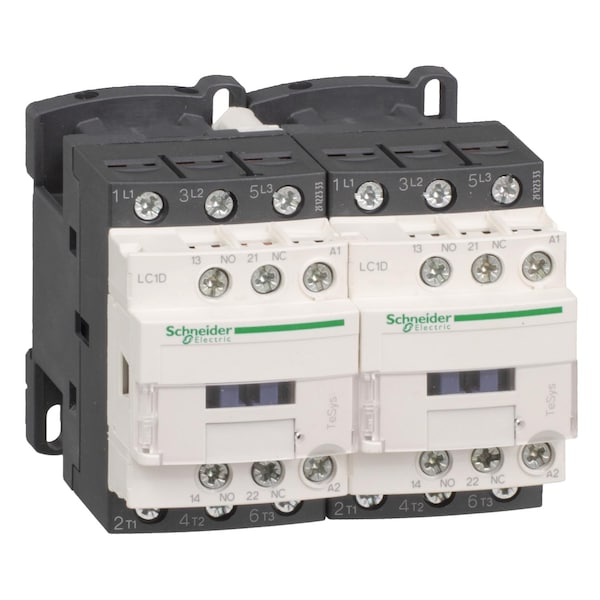

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D18F7

  • Zoro # G0568480

product price:
$
415.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
110V AC
Number of Poles
3
Full Load Amps-Inductive
18 A
Full Load Amps-Resistive
32 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC2D18F7
Zoro #
G0568480
UPC #
785901207450
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
86 mm
Overall Width
90 mm
Overall Height
77 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
110V AC
Number of Poles
3
Full Load Amps-Inductive
18 A
Full Load Amps-Resistive
32 A
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30
Series
LC2D
HP @ 3 Phase - 575V
15 hp
Application
Motor Control, Resistive Load
Features
Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
IP Rating
IP20
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Non-Overlap Time
1.5 ms
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Rated Breaking Capacity
300 A @ 440V
Includes Protective Cover
Yes
Max. Operating Watts
4 kW (at 220 to 230V AC 50 Hz), 7.5 kW (at 380 to 400V AC 50 Hz), 9 kW (at 415 to 440V AC 50 Hz), 10 kW (at 500V AC 50 Hz), 10 kW (at 660 to 690V AC 50 Hz)
Electrical Durability
1.65 Mcycles (18 A, AC-3, Less than 440 V); 1 Mcycles (32 A, AC-1, Less than 440 V)
Impedance
2.5 mOhm
Signalling Circuit Frequency
25 to 400 Hz
Fuse Amps
10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
Inrush VA
70 VA
Operating Speed
3600 cycles per hr
Tightening Torque
1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
Overvoltage Category
CAT III
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Mechanical Durability
15 Mcycles
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
Rated Insulation Volts
600/690V
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Net Weight
0.707 kg
Impulse Withstand Voltage
6 kV
Switching Voltage
17 V (Signalling Circuit)
Watts Loss
2 to 3W
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Switching Current
5 mA (Signalling Circuit)
Rated Short-Time Withstand Current
40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Fire Rating
UL 94 V1
Horsepower @ Three Phase - 240V AC
5 hp
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Three Phase - 480V AC
10 hp
Full Load Current - Inductive
18 A
Horsepower @ Three Phase - 208V AC
5 hp
Full Load Current - Resistive
32 A
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 32 A (at 60°C Power Circuit)
Maximum Voltage Rating
690V AC, 300V DC
Mounting Style
Plate, Rail

Description

Schneider Electric’s IEC Magnetic Contactor, 3-pole with reversing action, is an electromechanically operated switch designed to control power circuits in motor control and resistive-load applications. It features a 110 V AC coil, 1NC/1NO auxiliary contacts, and screw clamp terminals. The unit is rated for installation on plates or rails; complies with IP20 enclosure standards; rated for operation within specified voltage ranges.

Action: Reversing

  • Poles: 3
  • Auxiliary Contact Form: 1NC/1NO
  • Coil Voltage: 110 V AC
  • Electrical Connection: Screw Clamp Terminals
  • Mounting: Plate, Rail
  • Includes Protective Cover: Yes
  • IP Rating: IP20
  • Series: LC2D
  • Dimensions: Depth 86 mm; Width 90 mm; Height 77 mm
  • Net Weight: 0.707 kg
  • Application: Motor Control, Resistive Load
  • Full Load Current - Inductive: 18 A
  • Full Load Current - Resistive: 32 A
  • Rated Voltage: 690 V AC, 300 V DC
  • Rated Making Capacity: 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440 V (Power Circuit)
