Item

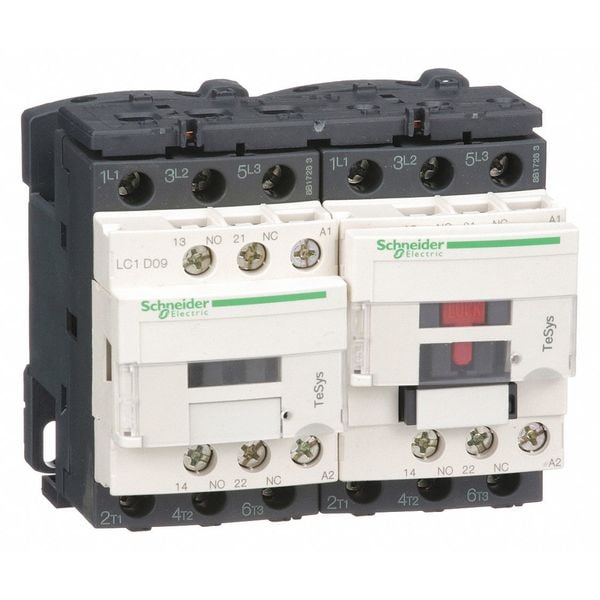

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Enclosure NEMA Rating
No Enclosure
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 575V
7 1/2 hp
Rated Breaking Capacity
250 A @ 440V
Mechanical Durability
15 Mcycles
Electrical Durability
0.6 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (9 A, AC-3, Less than 440 V)
Overvoltage Category
CAT III
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Rated Short-Time Withstand Current
30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Rated Insulation Volts
600/690V
Features
Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
Operating Speed
3600 cycles per hr
Tightening Torque
1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Switching Current
5 mA (Signalling Circuit)
Includes Protective Cover
Yes
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Switching Voltage
17 V (Signalling Circuit)
Impulse Withstand Voltage
6 kV
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50 Hz), 4 kW (at 380 to 400V AC 50 Hz), 4 kW (at 415 to 440V AC 50 Hz), 5.5 kW (at 500V AC 50 Hz), 5.5 kW (at 660 to 690V AC 50 Hz)
Application
Motor Control, Resistive Load
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Signalling Circuit Frequency
25 to 400 Hz
Fuse Amps
25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Mechanical Operating Durability
15,000,000
Maximum Voltage Rating
690V AC
NEMA Enclosure Rating
No Enclosure
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 480V AC
5 hp
Full Load Current - Resistive
25 A
Resistance Properties
Fire Resistant, Insulation Resistant
Electrical Operating Durability
2,000,000, 600,000
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 120V AC
1/2 hp
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 240V AC
2 hp
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Horsepower @ Single Phase - 240V AC
1 hp
Includes Auxiliary Contacts
Yes
Maximum Operating Temperature
140 Degrees F
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 208V AC
2 hp
Full Load Current - Inductive
9:00 AM
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)
