Item

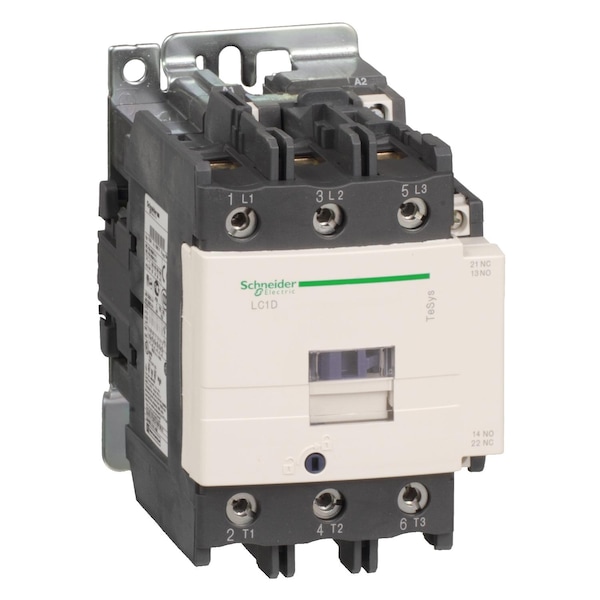

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, DNV, LROS, GOST, CCC, GL, RINA, BV, CSA, UL, THIEC 60068-2-30
HP @ 3 Phase - 575V
60 hp
Application
Motor Control, Resistive Load
Features
Without Built-In Suppressor Module
Operating Speed
3600 cycles per hr
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Vibration Resistance
3 G (Contactor Closed), 2 G (Contactor Open)
Signalling Circuit Frequency
25 to 400 Hz
Operating Time
20 to 35 ms (Closing), 6 to 20 ms (Opening)
Fuse Amps
10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)
Electrical Durability
0.8 Mcycles (125 A, AC-1, Less than 440 V); 1.5 Mcycles (80 A, AC-3, Less than 440 V); 1.5 Mcycles (80 A, AC-3e, Less than 440 V)
Rated Insulation Volts
600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Control Circuit Voltage Limits
Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 0.8 to 1.1 Uc (at -40 to 55°C 50 Hz), 1 to 1.1 Uc (at 55 to 70°C 50/60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz)
Tightening Torque
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Max. Operating Watts
22 kW (at 220 to 230V AC 50 Hz AC-3), 37 kW (at 380 to 400V AC 50 Hz AC-3), 45 kW (at 415 to 440V AC 50 Hz AC-3), 55 kW (at 500V AC 50 Hz AC-3), 45 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 400V AC 50 Hz AC-4), 22 kW (at 220 to 230V AC 50/60 Hz AC-3e), 37 kW (at 380 to 400V AC 50/60 Hz AC-3e), 45 kW (at 415 to 440V AC 50/60 Hz AC-3e), 55 kW (at 500V AC 50/60 Hz AC-3e), 45 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Shock Resistance
10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)
Overvoltage Category
CAT III
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1100 A @ 440V (Power Circuit)
Impulse Withstand Voltage
8 kV
Rated Short-Time Withstand Current
640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Mechanical Durability
4 Mcycles
Switching Voltage
17 V (Signalling Circuit)
Rated Breaking Capacity
1100 A @ 440V
Includes Protective Cover
Yes
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Protective Treatment
THIEC 60068-2-30
Operating Altitude
0 to 9842.52 ft (0 to 3000 m)
Maximum Operating Rate
3600 cyc/h 140°F (60°C)
Fire Resistance
1562°F (850°C) IEC 60695-2-1
Conventional Free Air Thermal Current
10 A (at 140°F (60°C)) for signalling circuit; 125 A (at 140°F (60°C)) for power circuit
Contactor Application
Resistive load; Motor control
Mechanical Robustness
Vibrations contactor open 2 Gn, 5 to 300 Hz); Shocks contactor open 8 Gn for 11 ms); Vibrations contactor closed 3 Gn, 5 to 300 Hz); Shocks contactor closed 10 Gn for 11 ms)
Rated Operational Voltage
Power circuit Less than or Equal to 300 V DC 25 to 400 Hz; Power circuit Less than or Equal to 690 V AC
Pole Contact Composition
3 NO
Control Circuit Voltage
230 V AC 50/60 Hz
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
Rated Operational Current
125 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
Heat Dissipation
6 to 10 W at 50/60 Hz
Utilisation Category
AC-3; AC-3e; AC-4; AC-1
Inrush Power in VA
245 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 245 VA 50 Hz cos phi 0.75 (at 68°F (20°C))
Contact Compatibility
M11
Climatic Withstand
IACS E10 exposure to damp heat
Power Dissipation Per Pole
5.1 W AC-3; 12.5 W AC-1; 5.1 W AC-3e
Control Circuit Type
AC 50/60 Hz standard
[Icw] Rated Short-Time Withstand Current
640 A 40°C - 10 s for power circuit, 990 A 40°C - 1 s for power circuit, 135 A 40°C - 10 min for power circuit, 320 A 40°C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
[Ui] Rated Insulation Voltage
power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
Horsepower @ Three Phase - 240V AC
30 hp
Horsepower @ Three Phase - 480V AC
60 hp
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Full Load Current - Resistive
125 A
Full Load Current - Inductive
80 A
Horsepower @ Single Phase - 240V AC
15 hp
Horsepower @ Three Phase - 208V AC
30 hp
Maximum Operating Temperature
140 Degrees F
Mounting Style
Plate, Rail
Ambient Air Temperature For Operation
-40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
Maximum Voltage Rating
690V AC, 300V DC
