- Item

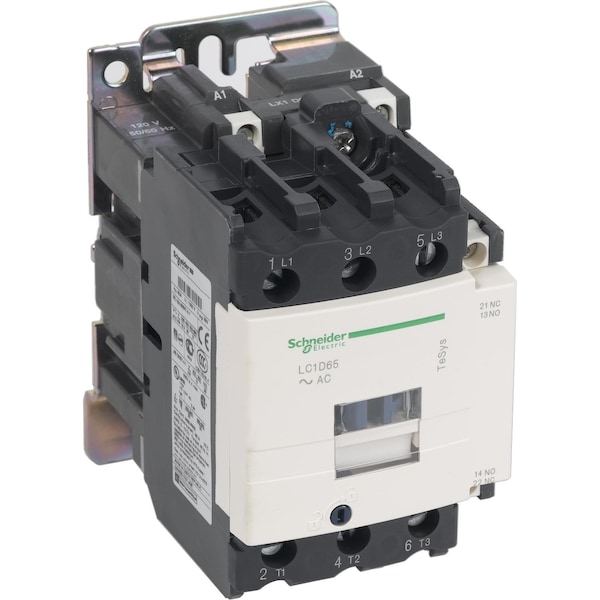

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 65 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- UL 508, EN 60947-5-1, EN 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14, UL, CCC, BV, GL, GOST, RINA, LROS, DNV, UKCA, TH IEC 60068-2-30
- HP @ 3 Phase - 575V
- 50 hp
- Series
- LC1D, TeSys
- Application
- Motor Control, Resistive Load
- Operating Speed
- 3600 cycles per min
- Fire Rating
- UL 94 V1
- Impedance
- 1.5 Ohm
- Rated Breaking Capacity
- 1000 kA @ 440V
- IP Rating
- IP2X
- Operating Time
- 12 to 26 ms (Closing), 4 to 19 ms (Opening)
- Rated Making Capacity
- 140 A @ 440V (AC Control Circuit), 1000 A @ 440V (Power Circuit)
- Non-Overlap Time
- 1.5 ms
- Hold VA
- 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
- Fuse Amps
- 125 A (Type 2 Power Circuit), 160 A (Type 1 Power Circuit), 10 A (Control Circuit)
- Rated Insulation Volts
- 600/690V
- Inrush VA
- 140 to 160 VA
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free
- Insulation Resistance Range
- Greater Than 10 Mohms (Control Circuit)
- Max. Operating Watts
11 kW (at 400V AC 50 Hz AC-4), 30 kW (at 380 to 400V AC 50 Hz AC-3), 37 kW (at 500V AC 50 Hz AC-3), 37 kW (at 660 to 690V AC 50 Hz AC-3), 18.5 kW (at 220 to 230V AC 50 Hz AC-3), 30 kW (at 415V AC 50 Hz AC-3), 37 kW (at 1000V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 380 to 400V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz AC-3e), 37 kW (at 660 to 690V AC 50 Hz AC-3e), 18.5 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 415V AC 50 Hz AC-3e), 37 kW (at 1000V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz)
- Watts Loss
- 4 to 5W
- Mechanical Durability
- 6 Mcycles
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Impulse Withstand Voltage
- 6 kV
- Includes Protective Cover
- Yes
- Control Circuit Voltage Limits
- Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz), Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz)
- Tightening Torque
- 1.7 Nm (Control Circuit), 5 Nm (Power Circuit)
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Switching Current
- 5 mA (Control Circuit)
- Overvoltage Category
- CAT III
- Net Weight
- 2.185 kg
- Switching Voltage
- 17 V (Control Circuit)
- Rated Short-Time Withstand Current
- 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit)
- Control Circuit Type
- AC 50/60 Hz
- Heat Dissipation
- 4-5 W at 50/60 Hz for control circuit
- Mechanical Robustness
- shocks contactor closed 15 Gn for 11 ms) , vibrations contactor opened 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor opened 10 Gn for 11 ms)
- Maximum Operating Rate
- 3600 cyc/mn 60°C
- [Ui] Rated Insulation Voltage
- control circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL IEC 60947-1, control circuit 690 V IEC 60947-1, power circuit 690 V CSA IEC 60947-1, control circuit 600 V CSA
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Protective Treatment
- TH 3)IEC 60068-2-30
- Utilisation Category
- AC-4, AC-1, AC-2, AC-3e
- Climatic Withstand
- IACS E10 exposure to damp heat
- Contactor Application
- resistive load, motor control
- Protective Cover
- with
- Auxiliary Contacts Type
- mirror contact 1 NC IEC 60947-4-1, mechanically linked 1 NO + 1 NC IEC 60947-5-1
- Pole Contact Composition
- 3 NO
- [Icw] Rated Short-Time Withstand Current
- 520 A 40°C - 10 s for power circuit, 900 A 40°C - 1 s for power circuit
- Power Dissipation Per Pole
- 6.4 W AC-1, 4.2 W AC-3e, 6.3 W AC-3, 9.6 W AC-1
- Fire Resistance
- 850°C IEC 60695-2-1
- Full Load Current - Inductive
- 65 A
- Horsepower @ Three Phase - 240V AC
- 20 hp
- Horsepower @ Single Phase - 240V AC
- 10 hp
- Horsepower @ Three Phase - 208V AC
- 20 hp
- Full Load Current - Resistive
- 80 A
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Conventional Free Air Thermal Current
- 80 A (at 60°C Power Circuit), 10 A (at 60°C Control Circuit)
- Control Circuit Voltage
- 24 V AC 50/60 Hz
- Maximum Operating Temperature
- 140 Degrees F
- Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- Maximum Voltage Rating
- 690V AC
- Inrush Power in VA
- 160-160 VA cos phi 0.75 (at 20°C), 140-140 VA cos phi 0.75 (at 20°C)
- Rated Operational Current
- 65 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 65 A (at <60°C) at <= 440 V AC AC-3e for power circuit, 65 A (at <60°C) at 24 V AC AC-3 for power circuit, 80 A (at <60°C) at 24 V AC AC-1 for power circuit
- Mounting Style
- Plate, Rail
