- MFR #
- LC1D1156B7
- Zoro #
- G0849731
- UPC #
- 785901297055
- Country of Origin
- Czechia
- Item

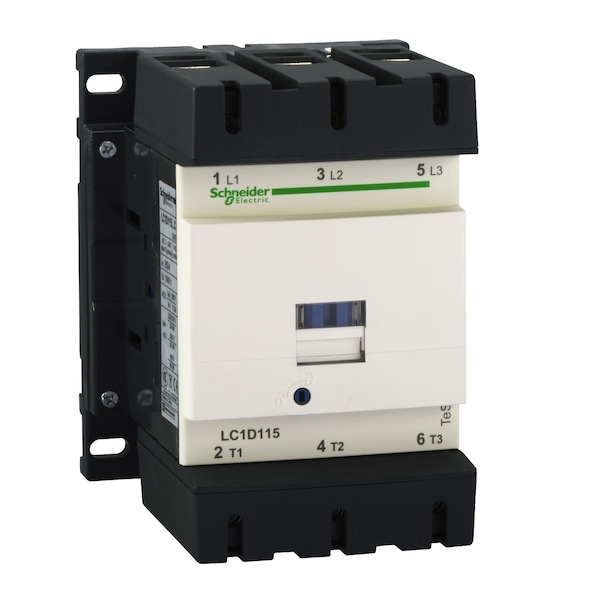

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 115 A
- Full Load Amps-Resistive
- 200 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- Series
- LC1D, TeSys
- HP @ 3 Phase - 575V
- 100 hp
- Features
- Built-In Bi-Directional Peak Limiting Diode Suppressor
- Application
- Motor Control, Resistive Load
- Pollution Degree
- 3
- Contactor Application
- resistive load, motor control
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
- Operating Time
- 6...20 ms opening, 20...50 ms closing
- Protective Cover
- with
- Climatic Withstand
- IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
- Tightening Torque
- control circuit 1.2 N.m lugs-ring terminals flat Ø 6 mm M3.5, control circuit 1.2 N.m lugs-ring terminals Philips No 2 M3.5, power circuit 12 N.m lugs-ring terminals hexagonal 13 mm M8, power circuit 12 N.m bars hexagonal 13 mm M8, control circuit 1.2 N.m lugs-ring terminals pozidriv No 2 M3.5
- Electrical Durability
- 0.8 Mcycles 200 A AC-1 <= 440 V, 0.95 Mcycles 115 A AC-3 <= 440 V, 0.95 Mcycles 115 A AC-3e <= 440 V
- Overvoltage Category
- III
- Mechanical Durability
- 8 Mcycles
- Fire Resistance
- 850°C IEC 60695-2-1
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
- [Icw] Rated Short-Time Withstand Current
- 250 A 40°C - 10 min for power circuit, 550 A 40°C - 1 min for power circuit, 950 A 40°C - 10 s for power circuit, 1100 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
- Heat Dissipation
- 3-8 W at 50/60 Hz
- Pole Contact Composition
- 3 NO
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor closed 15 Gn for 11 ms) , shocks contactor open 6 Gn for 11 ms)
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Compatibility Code
- LC1D
- Power Dissipation Per Pole
- 24 W AC-1, 7.9 W AC-3, 7.9 W AC-3e
- Utilisation Category
- AC-4, AC-3, AC-1, AC-3e
- Control Circuit Type
- AC 50/60 Hz
- Protective Treatment
- THIEC 60068-2-30
- Control Circuit Voltage Limits
- 0.3...0.5 Uc -40-70°C drop-out AC 50/60 Hz, 0.8...1.15 Uc -40-55°C operational AC 50/60 Hz, 1...1.15 Uc 55-70°C operational AC 50/60 Hz
- Signalling Circuit Frequency
- 25 to 400 Hz
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
- Maximum Operating Rate
- 2400 cyc/h 60°C
- Pvc Free
- Yes
- Device Short Name
- LC1D
- Rated Insulation Volts
- 600/1000V (Power Circuit), 600/690V (Signalling Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Includes Protective Cover
- Yes
- Switching Current
- 5 mA (Signalling Circuit)
- Operating Speed
- 2400 cycles per hr
- Rated Short-Time Withstand Current
- 250 A (at 40°C for 10 min Power Circuit), 550 A (at 40°C for 1 min Power Circuit), 950 A (at 40°C for 10 s Power Circuit), 1100 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Impedance
- 0.6 mOhm
- Impulse Withstand Voltage
- 8 kV
- Fuse Amps
- 250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
- Switching Voltage
- 17 V (Signalling Circuit)
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
- Net Weight
- 2.5 kg
- Max. Operating Watts
30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V AC 50/60 Hz AC-4), 30 kW (at 220 to 230V AC 50/60 Hz AC-3e), 55 kW (at 380 to 400V AC 50/60 Hz AC-3e), 59 kW 415 to (at 440V AC 50/60 Hz AC-3e), 75 kW (at 500V AC 50/60 Hz AC-3e), 80 kW (at 660 to 690V AC 50/60 Hz AC-3e), 65 kW (at 1000V AC 50/60 Hz AC-3e)
- Fire Rating
- UL 94 V1
- Hold VA
- 2 to 18 VA
- Rated Making Capacity
- 1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Inrush VA
- 280 to 350 VA
- Environmental Attributes
- Mercury Free, PVC Free, Pollution Degree 3
- IP Rating
- IP20
- Watts Loss
- 3 to 8W
- Horsepower @ Three Phase - 240V AC
- 40 hp
- Horsepower @ Three Phase - 208V AC
- 30 hp
- Full Load Current - Inductive
- 115 A
- Horsepower @ Three Phase - 480V AC
- 75 hp
- Full Load Current - Resistive
- 200 A
- Mounting Style
- Plate, Rail
- Inrush Power in VA
- 280-350 VA 60 Hz cos phi 0.8 (at 20°C), 280-350 VA 50 Hz cos phi 0.8 (at 20°C)
- Rated Operational Voltage
- power circuit <= 1000 V AC 25...400 Hz, power circuit <= 300 V DC
- Control Circuit Voltage
- 24 V AC 50/60 Hz
- Maximum Voltage Rating
- 1000V AC, 300V DC
- Conventional Free Air Thermal Current
- 200 A (at 60°C Power Circuit)
- Rated Operational Current
- 200 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 115 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 115 A (at <60°C) at <= 440 V AC AC-3e for power circuit
- Ambient Air Temperature For Operation
- -40-60°C, 60-70°C with derating
