- Item

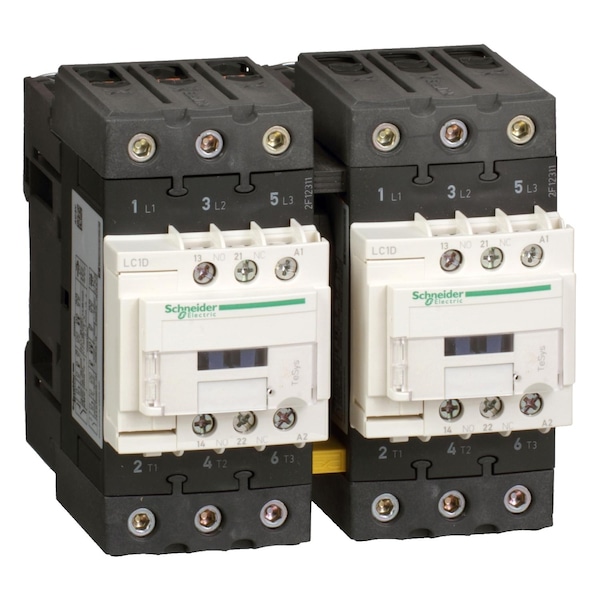

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 50 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1
- HP @ 3 Phase - 575V
- 40 hp
- Series
- LC2D, TeSys, TeSys Deca
- Features
- Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
- Application
- Motor Control, Resistive Load
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz, vibrations contactor closed4 Gn, 5...300 Hz, shocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms
- [Icw] Rated Short-Time Withstand Current
- 400 A 40°C - 10 s for power circuit, 810 A 40°C - 1 s for power circuit, 84 A 40°C - 10 min for power circuit, 208 A 40°C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
- Operating Time
- 4...19 ms opening, 12...26 ms closing
- Signalling Circuit Frequency
- 25...400 Hz
- Mechanical Durability
- 6 Mcycles
- Heat Dissipation
- 4-5 W 50/60 Hz
- Ambient Air Temperature For Storage
- -60-80°C
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Contactor Application
- resistive load, motor control
- Electrical Durability
- 1.45 Mcycles 50 A AC-3 <= 440 V, 1.1 Mcycles 80 A AC-1 <= 440 V, 1.45 Mcycles 50 A AC-3e <= 440 V
- Pvc Free
- Yes
- Product Name
- TeSys D, TeSys Deca
- Interlocking Type
- mechanical
- Fire Resistance
- 850°C IEC 60695-2-1
- Device Short Name
- LC2D
- Control Circuit Voltage Limits
- 0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz, 0.8...1.1 Uc -40-60°C operational AC 50 Hz, 0.85...1.1 Uc -40-60°C operational AC 60 Hz, 1...1.1 Uc 60-70°C operational AC 50/60 Hz
- Protective Treatment
- TH IEC 60068-2-30
- Power Dissipation Per Pole
- 3.7 W AC-3, 9.6 W AC-1, 3.7 W AC-3e
- Tightening Torque
control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2, power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm, power circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 2.5 N.m screw clamp terminals pozidriv No 2
- Device Presentation
- preassembled with reversing power busbar
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
- Pole Contact Composition
- 3 NO
- Utilisation Category
- AC-3, AC-1, AC-3e
- Rated Breaking Capacity
- 900 A at 440 V for power circuit conforming to IEC 60947
- Control Circuit Type
- AC 50/60 Hz
- Overvoltage Category
- III
- Ambient Air Temperature For Operation
- -40-60°C, 60-70°C with derating
- Protective Cover
- with
- Maximum Operating Rate
- 3600 cyc/h 60°C
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
- Climatic Withstand
- IACS E10, IEC 60947-1 Annex Q category D
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Operating Speed
- 3600 cycles per hr
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 900 A @ 440V (Power Circuit)
- Hold VA
- 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
- Impedance
- 1.5 mOhm
- Switching Current
- 5 mA (Signalling Circuit)
- Fuse Amps
- 10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit)
- Max. Operating Watts
- 15 kW (at 220 to 230V AC 50 Hz), 22 kW (at 380 to 400V AC 50 Hz), 30 kW (at 500V AC 50 Hz), 33 kW (at 660 to 690V AC 50 Hz), 25 kW (at 415V AC 50 Hz), 30 kW (at 440V AC 50 Hz)
- Net Weight
- 1.88 kg
- Switching Voltage
- 17 V (Signalling Circuit)
- Inrush VA
- 140 VA (at 60 Hz 20°C), 160 VA (at 50 Hz 20°C)
- Rated Insulation Volts
- 600/690V
- Fire Rating
- UL 94 V1
- IP Rating
- IP20
- Includes Protective Cover
- Yes
- Impulse Withstand Voltage
- 6 kV
- Watts Loss
- 4 to 5W
- Rated Short-Time Withstand Current
- 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Horsepower @ Three Phase - 208V AC
- 15 hp
- Full Load Current - Resistive
- 80 A
- Horsepower @ Single Phase - 240V AC
- 7 1/2 hp
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Full Load Current - Inductive
- 50 A
- Horsepower @ Three Phase - 240V AC
- 15 hp
- Control Circuit Voltage
- 24 V AC 50/60 Hz
- Maximum Voltage Rating
- 690V AC, 300V DC
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit)
- Mounting Style
- Plate, Rail
- Inrush Power in VA
- 140-140 VA 60 Hz cos phi 0.75 (at 20°C), 160-160 VA 50 Hz cos phi 0.75 (at 20°C)
- Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC
- Rated Operational Current
- 50 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 50 A (at <60°C) at <= 440 V AC AC-3e for power circuit
