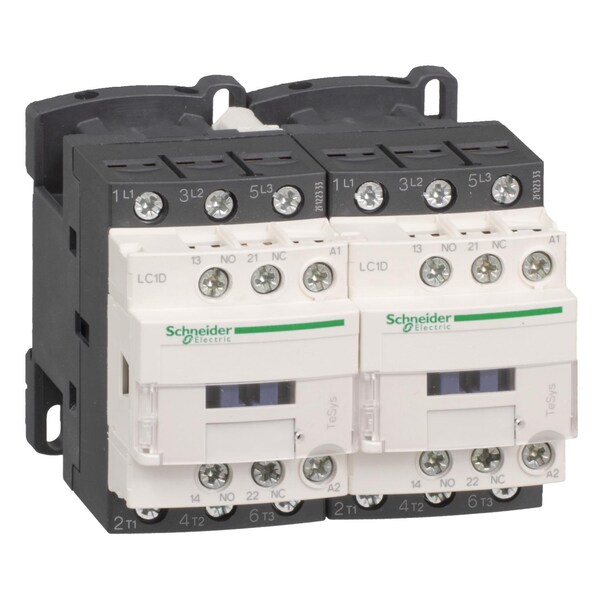

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp LC2D12BL - main
Shop SCHNEIDER ELECTRIC

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D12BL

  • Zoro # G0568447

product price:  $449.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC2D12BL
Zoro #
G0568447
UPC #
785901541530
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
95 mm
Overall Height
77 mm
Overall Width
90 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30
Series
LC2D
HP @ 3 Phase - 575V
10 hp
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar
Application
Motor Control, Resistive Load
Mechanical Durability
30 Mcycles
Fuse Amps
10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
Control Circuit Voltage Limits
Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C), Operational DC: 0.8 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
Max. Operating Watts
3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz)
Overvoltage Category
CAT III
Includes Protective Cover
Yes
Rated Breaking Capacity
250 A @ 440V
Switching Current
5 mA (Signalling Circuit)
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Impedance
2.5 mOhm
Rated Insulation Volts
600/690V
Impulse Withstand Voltage
6 kV
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Switching Voltage
17 V (Signalling Circuit)
Electrical Durability
2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V)
Net Weight
1.027 kg
Non-Overlap Time
1.5 ms
Fire Rating
UL 94 V1
Rated Short-Time Withstand Current
30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Tightening Torque
1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
Environmental Attributes
Mercury Free, PVC Free, Pollution Degree 3
Operating Time
65.45 to 88.55 ms (Closing), 20 to 30 ms (Opening)
Operating Speed
3600 cycles per hr
IP Rating
IP20
Signalling Circuit Frequency
25 to 400 Hz
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Three Phase - 240V AC
3 hp
Full Load Current - Inductive
12:00 AM
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Full Load Current - Resistive
25 A
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)
Maximum Voltage Rating
690V AC, 300V DC
Mounting Style
Plate, Rail

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing-contactor rated for switching power circuits within specified parameters. It uses a 24 V DC coil and includes an auxiliary contact of the 1NC/1NO configuration. The unit uses screw clamp terminals and is compatible with mounting on plate or rail as per installation guidelines. It belongs to the LC2D series and has an IP20 enclosure; protective cover included for additional protection if used appropriately.

Key features

  • Series: LC2D
  • Poles: 3
  • Action: Reversing
  • Coil voltage: 24 V DC
  • Auxiliary contact form: 1NC/1NO
  • Electrical connection: Screw Clamp Terminals
  • Mounting: Plate, Rail
  • Rated voltage: rated for operation within the specified voltage ranges under normal conditions
  • IP rating: conforms to the IP20 standard when installed and used according to manufacturer instructions
  • Includes protective cover: includes a protective cover; proper use recommended as per product documentation
  • Dimensions (W x H x D): dimensions are provided for reference only; actual installation should follow applicable standards and guidelines
  • Net weight: net weight is provided for informational purposes only; does not imply performance characteristics
  • Non-Overlap Time: 1.5 ms
  • Mechanical durability: 30 Mcycles
  • Shock resistance: 15 G (Closed), 10 G (Open)
  • Signalling circuit: Switching current 5 mA; Switching voltage 17 V
  • Standards: EN 60947-4-1, EN 60947-5-1, UL 508, CSA C22.2 No 14, IEC 60947-4-1, IEC 60947-5-1
  • Rated making capacity: 250 A @ 440 V (Power Circuit), 140 A (AC Signalling), 250 A (DC Signalling)
  • Fuse ratings (as applicable): 10 A (Signalling), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)

    • Documents & Resources
