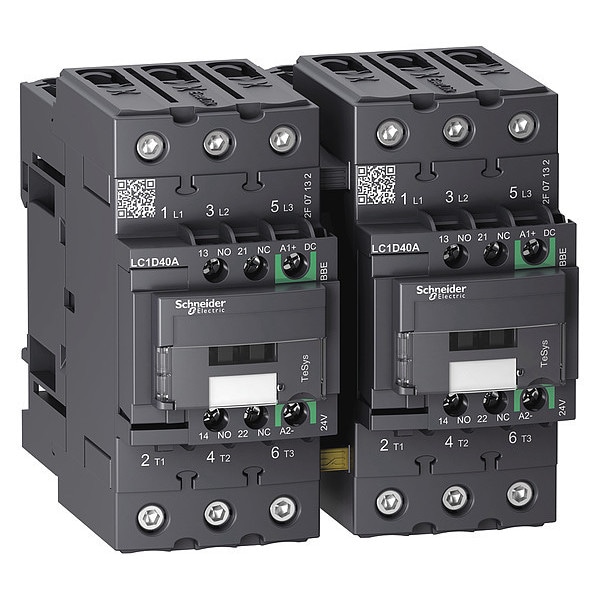

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D40ABBE

  • Zoro # G6044147

product price:  $328.63
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC2D40ABBE
Zoro #
G6044147
UPC #
-
Country of Origin
France

Dimensions

Overall Width
4.69 in
Overall Depth
4.72 in
Overall Height
4.8 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
30 hp
Reversing
Yes
Series
TeSys Deca
IP Rating
IP20
Resistance Properties
Fire Resistant, Insulation Resistant
Contactor Style
IEC
Horsepower @ Single Phase - 240V AC
5 hp
Mechanical Operating Durability
6,000,000
Horsepower @ Single Phase - 120V AC
3 hp
Frequency
50/60 Hz
Full Load Current - Resistive
60 A
Mounting Style
DIN Rail, Plate
Full Load Current - Inductive
40 A
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Three Phase - 480V AC
30 hp
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Three Phase - 600V AC
30 hp
NEMA Enclosure Rating
No Enclosure
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
2,000,000, 700,000
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Maximum Voltage Rating
690V AC
Number of Normally Open Main Contacts
3
Switching Voltage
17 V (Signalling Circuit)
Environmental Attributes
Mercury Free, Pollution Degree 3
Impulse Withstand Voltage
6 kV
Rated Insulation Volts
690V
Fuse Amps
10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit)
Signalling Circuit Frequency
25 to 400 Hz
Tightening Torque
1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
Max. Operating Watts
11 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 22 kW (at 415V AC 50 Hz), 22 kW (at 440V AC 50 Hz), 22 kW (at 500V AC 50 Hz), 30 kW (at 660 to 690V AC 50 Hz)
Fire Rating
UL 94 V1
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Impedance
1.5 mOhm
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit)
Electrical Durability
2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V)
Control Circuit Voltage Limits
Drop-Out DC: Less Than 0.1 Uc (at -40 to 70°C); Operational DC: 0.8 to 1.2 Uc (at -40 to 60°C), 1 to 1.2 Uc (at 60 to 70°C)
Operating Time
55 to 65 ms (Closing), 20 to 120 ms (Opening)
Operating Speed
3600 cycles per hr
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit)
Net Weight
2.154 kg
Watts Loss
0.5W
Mechanical Durability
6 Mcycles
Rated Breaking Capacity
800 A @ 440V
Application
Motor Control, Resistive Load
Includes Protective Cover
Yes
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Switching Current
5 mA (Signalling Circuit)
Overvoltage Category
CAT III
Non-Overlap Time
1.5 ms
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit)

Description

The item is an IEC Magnetic Contactor from Schneider Electric (TeSys Deca), a 3-pole reversing device with a 24 V DC coil. It includes 2 auxiliary contacts (1 normally open / 1 normally closed) and is rated for use in motor control and resistive load applications within specified parameters. The control circuit uses Screw Clamp terminals and the power circuit uses EverLink BTR screws; it is compatible with DIN rail or plate mounting as per installation guidelines and has an IP20 rating without additional enclosure.

Poles: 3

  • Reversing: Yes
  • Coil Voltage: 24 V DC
  • Auxiliary Contacts: 2 (1 normally open / 1 normally closed)
  • Series / Style: TeSys Deca; IEC
  • Enclosure / Protection: has an IP20 rating without additional enclosure
  • Mounting: DIN Rail, Plate
  • Electrical Connections: Control Circuit – Screw Clamp; Power Circuit – EverLink BTR
  • Maximum Voltage: rated for operation up to 690 V AC within specified conditions
  • Frequency: 50/60 Hz
  • Full Load Current: rated for full load currents of up to 60 A resistive and 40 A inductive under specified conditions
  • Rated Making Capacity: rated for making capacity within specified limits
  • Electrical Durability: tested for durability up to specified cycle counts under defined load conditions
  • Mechanical Durability: designed to withstand a specified number of mechanical operations
  • Dimensions (HxWxD): 4.80 in × 4.69 in × 4.72 in
  • Net Weight: 2.154 kg
  • Fire Rating: UL 94 V1
  • Impedance: has an impedance value as specified; does not imply performance guarantee
  • Impulse Withstand Voltage: rated for impulse voltage withstand within the specified testing parameters
  • Insulation Resistance: insulation resistance exceeds the minimum threshold under test conditions
  • Shock Resistance: tested for shock resistance at specified levels; does not guarantee safety in all environments
  • Vibration Resistance: tested for vibration resistance at these levels; actual performance may vary based on application conditions
  • Working Height: suitable for operation at elevations up to this height when installed properly
  • Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
  • Series: TeSys Deca
