- Item

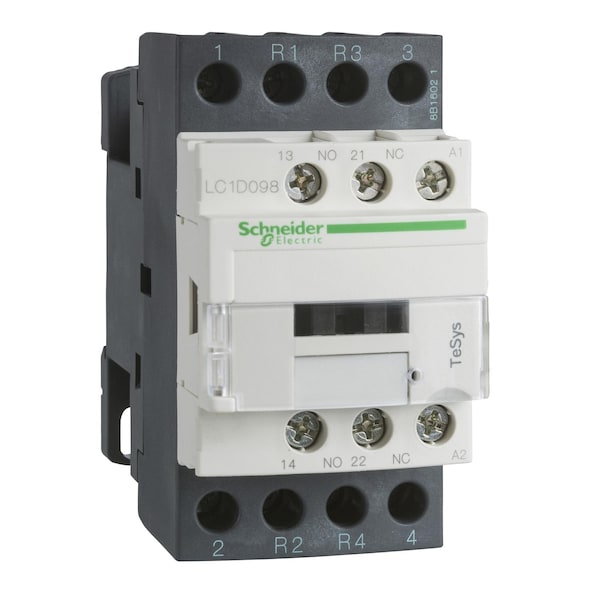

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V DC
- Number of Poles
- 4
- Full Load Amps-Inductive
- 18 A
- Full Load Amps-Resistive
- 32 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, UL, CSA, CCC, EAC, UKCA, CB, EU-RO-MR by DNV-GL, THIEC 60068-2-30
- Coil Volts
- 24 V DC
- Series
- LC1D
- Application
- Resistive Load
- Features
- With Integral Suppression Device
- IP Rating
- IP20
- Electrical Connection
- Screw Clamp Terminals
- Rated Voltage
- 690V AC
- Mechanical Durability
- 30 Mcycles
- Switching Current
- 5 mA (Signalling Circuit)
- Switching Voltage
- 17 V (Signalling Circuit)
- Mounts On
- Plate, Rail
- Max. Temperature
- 850°C
- Rated Insulation Volts
- 600/690V
- Overvoltage Category
- CAT III
- Fire Rating
- UL 94 V1
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
- Tightening Torque
- 1.7 Nm (Control Circuit), 1.8 Nm (Power Circuit)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Control Circuit Voltage Limits
- Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 60°C); Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C)
- Rated Short-Time Withstand Current
- 145 A (at 40 Degrees C for 10 s Power Circuit), 240 A (at 40 Degrees C for 1 s Power Circuit), 40 A (at 40??C for 10 min Power Circuit), 84 A (at 40 Degrees C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Fuse Amps
- 10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
- Net Weight
- 0.585 kg
- Includes Protective Cover
- Yes
- Rated Breaking Capacity
- 300 A @ 440V
- Operating Speed
- 3600 cycles per hr
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Impulse Withstand Voltage
- 6 kV
- Electrical Durability
- 1 Mcycles (32 A, AC-1, Less than 440 V)
- Impedance
- 2.5 mOhm
- Operating Time
- 53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Thermal Amperage
- 10 A (at 60 Degrees C Signalling Circuit), 32 A (at 60 Degrees C Power Circuit)
- Non-Overlap Time
- 1.5 ms
- Environmental Attributes
- Mercury Free, PVC Free, Pollution Degree 3
- Time Constant
- 28 ms
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
- Flame Retardance
- V1 conforming to UL 94
- Protective Treatment
- THIEC 60068-2-30
- Mounting Support
- plate, rail
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- Ip Degree of Protection
- IP20 front face IEC 60529
- Inrush Power In W
- 5.4-5.4 W 20°C)
- Average Impedance
- 2.5 mOhm - Ith 32 A 50 Hz for power circuit
- Range of Product
- TeSys Deca
- Control Circuit Type
- DC standard
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60°C) for signalling circuit, 32 A (at 60°C) for power circuit
- Product or Component Type
- contactor
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
- Fire Resistance
- 850°C IEC 60695-2-1
- [Icw] Rated Short-Time Withstand Current
- 145 A 40°C - 10 s for power circuit, 240 A 40°C - 1 s for power circuit, 40 A 40°C - 10 min for power circuit, 84 A 40°C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
- Maximum Operating Rate
- 3600 cyc/h 60°C
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor open 10 Gn for 11 ms) , shocks contactor closed 15 Gn for 11 ms)
- Minimum Switching Current
- 5 mA for signalling circuit
- Pole Contact Composition
- 2 NO + 2 NC
- [Ie] Rated Operational Current
- 32 A (at <60°C) at <= 440 V AC AC-1 for power circuit
- Connections - Terminals
control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: solid without cable end
- Power Dissipation Per Pole
- 2.5 W AC-1
- Utilisation Category
- AC-1, AC-3, AC-3e, AC-4
- Permissible Ambient Air Temperature Around The Device
- -40-60°C, 60-70°C with derating
- Hold-In Power Consumption In W
- 5.4-5.4 W 20°C
- Poles Description
- 4P
- Protective Cover
- with
- Minimum Switching Voltage
- 17 V for signalling circuit
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1, 50 A gG at <= 690 V coordination type 1 for power circuit, 35 A gG at <= 690 V coordination type 2 for power circuit
- Irms Rated Making Capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 300 A at 440 V for power circuit conforming to IEC 60947
- Pollution Degree
- 3
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Climatic Withstand
- IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
- Full Load Current - Resistive
- 32 A
- Full Load Current - Inductive
- 18 A
