- MFR #

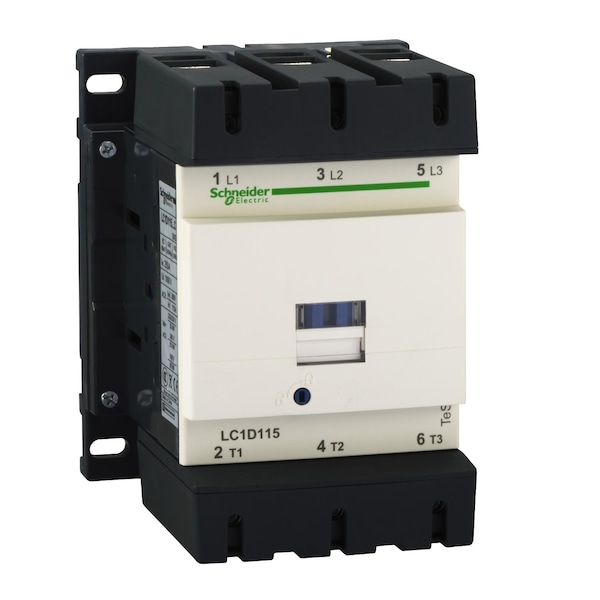

- LC1D115T7
- Zoro #
- G0568946
- UPC #
- 785901424925
- Country of Origin
- Czechia
- Item
- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 480V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 115 A
- Full Load Amps-Resistive
- 200 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, GL, LROS, CCC, GOST, RINA, DNV, UL, CSA, UKCA, CE, THIEC 60068-2-30
- Series
- LC1D
- HP @ 3 Phase - 575V
- 100 hp
- Features
- Built-In Bi-Directional Peak Limiting Diode Suppressor
- Application
- Motor Control, Resistive Load
- Operating Time
- 6 to 20 ms (Opening), 20 to 50 ms (Closing)
- Operating Speed
- 2400 cycles per hr
- Electrical Durability
- 0.8 Mcycles (200 A, AC-1, Less than 440 V); 0.95 Mcycles (115 A, AC-3, Less than 440 V); 0.95 Mcycles (115 A, AC-3e, Less than 440 V)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Includes Protective Cover
- Yes
- Overvoltage Category
- CAT III
- Hold VA
- 2 to 18 VA
- Environmental Attributes
- Mercury Free, PVC Free, Pollution Degree 3
- Impulse Withstand Voltage
- 8 kV
- Rated Breaking Capacity
- 1100 A @ 440V
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
- Watts Loss
- 3 to 8W
- Switching Current
- 5 mA (Signalling Circuit)
- Impedance
- 0.6 mOhm
- Max. Operating Watts
30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V AC 50/60 Hz AC-4), 30 kW (at 220 to 230V AC 50/60 Hz AC-3e), 55 kW (at 380 to 400V AC 50/60 Hz AC-3e), 59 kW 415 to (at 440V AC 50/60 Hz AC-3e), 75 kW (at 500V AC 50/60 Hz AC-3e), 80 kW (at 660 to 690V AC 50/60 Hz AC-3e), 65 kW (at 1000V AC 50/60 Hz AC-3e)
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz)
- Fire Rating
- UL 94 V1
- Rated Short-Time Withstand Current
- 250 A (at 40°C for 10 min Power Circuit), 550 A (at 40°C for 1 min Power Circuit), 950 A (at 40°C for 10 s Power Circuit), 1100 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Signalling Circuit Frequency
- 25 to 400 Hz
- IP Rating
- IP20
- Rated Making Capacity
- 1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Mechanical Durability
- 8 Mcycles
- Net Weight
- 2.5 kg
- Switching Voltage
- 17 V (Signalling Circuit)
- Tightening Torque
- 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
- Rated Insulation Volts
- 600/1000V (Power Circuit), 600/690V (Signalling Circuit)
- Fuse Amps
- 250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
- Inrush VA
- 280 to 350 VA
- Non-Overlap Time
- 1.5 ms
- Pole Contact Composition
- 3 NO
- Control Circuit Voltage
- 480 V AC 50/60 Hz
- Rated Operational Current
- 200 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 115 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 115 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
- Rated Operational Voltage
- Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Protective Cover
- With
- Safety Reliability Level
- B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1; B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Contact Compatibility
- M13
- Pollution Degree
- 3
- Maximum Operating Rate
- 2400 cyc/h 140°F (60°C)
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Mechanical Robustness
- Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 6 Gn for 11 ms)
- Conventional Free Air Thermal Current
- 200 A (at 140°F (60°C)) for power circuit
- Utilisation Category
- AC-3; AC-1; AC-4; AC-3e
- Climatic Withstand
- IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
- Heat Dissipation
- 3 to 8 W at 50/60 Hz
- Contactor Application
- Resistive load; Motor control
- Power Dissipation Per Pole
- 24 W AC-1; 7.9 W AC-3; 7.9 W AC-3e
- Inrush Power in VA
- 280 to 350 VA 60 Hz cos phi 0.8 (at 68°F (20°C)); 280 to 350 VA 50 Hz cos phi 0.8 (at 68°F (20°C))
- Protective Treatment
- THIEC 60068-2-30
- Control Circuit Type
- AC 50/60 Hz
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Horsepower @ Three Phase - 208V AC
- 30 hp
- Full Load Current - Inductive
- 115 A
- Horsepower @ Three Phase - 480V AC
- 75 hp
- Horsepower @ Three Phase - 240V AC
- 40 hp
- Full Load Current - Resistive
- 200 A
- Mounting Style
- Plate, Rail
- Maximum Voltage Rating
- 1000V AC, 300V DC
- Ambient Air Temperature For Operation
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Maximum Operating Temperature
- 140 Degrees F
