  7. IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp

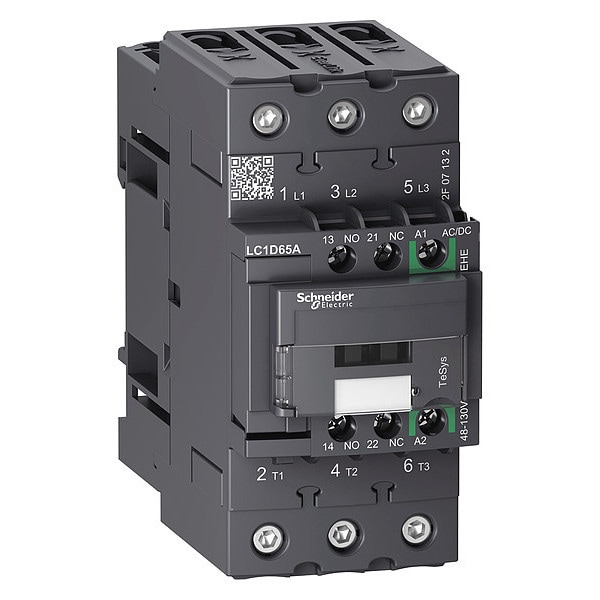

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp LC1D65AEHE - main

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D65AEHE

  • Zoro # G6030880

product price:  $282.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Full Load Amps-Inductive
65 A
Full Load Amps-Resistive
80 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D65AEHE
Zoro #
G6030880
UPC #
03606480988271
Country of Origin
France

Dimensions

Depth
4.72 in
Width
2.17 in
Height
4.8 in
Overall Height
4.8 in
Overall Depth
4.72 in
Overall Width
2.17 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Full Load Amps-Inductive
65 A
Full Load Amps-Resistive
80 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
Aux. Contact Configuration
1NO/1NC
HP @ 1 Phase - 120V
5 hp
HP @ 1 Phase - 240V
10 hp
HP @ 3 Phase - 575V
50 hp
Enclosure NEMA Rating
No Enclosure
Coil Volts
48 to 130 V AC/DC
Hz
50/60
HP @ 3 Phase - 480V
40 hp
HP @ 3 Phase - 240V
20 hp
Reversing
No
HP @ 3 Phase - 208V
20 hp
Series
TeSys Deca
Includes
Everlink Power Connections
IP Rating
IP20
NEMA Enclosure Rating
No Enclosure
Full Load Current - Resistive
80 A
Horsepower @ Three Phase - 240V AC
20 hp
Embedded Surge Suppressor
No
Frequency
50/60 Hz
Horsepower @ Single Phase - 240V AC
10 hp
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 600V AC
50 hp
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 208V AC
20 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Phase
Three
Electrical Operating Durability
1,800,000, 500,000
Mechanical Operating Durability
6,000,000
Horsepower @ Three Phase - 480V AC
40 hp
Includes Auxiliary Contacts
Yes
Number of Normally Open Main Contacts
3
Maximum Operating Temperature
140 Degrees F
Contactor Style
IEC
Full Load Current - Inductive
65 A
Mounting Style
DIN Rail, Plate
Horsepower @ Single Phase - 120V AC
5 hp
Max. Temperature
850°C
Overvoltage Category
CAT III
Electrical Connection
Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors
Thermal Amperage
80 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
Max. Operating Watts
18.5 kW (at 220 to 230V AC 50 Hz AC-3), 30 kW (at 380 to 400V AC 50 Hz AC-3), 37 kW (at 415V AC 50 Hz AC-3), 37 kW (at 440V AC 50 Hz AC-3), 37 kW (at 500V AC 50 Hz AC-3), 37 kW (at 660 to 690V AC 50 Hz AC-3), 18.5 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 380 to 400V AC 50 Hz AC-3e), 37 kW (at 415V AC 50 Hz AC-3e), 37 kW (at 440V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz AC-3e), 37 kW (at 660 to 690V AC 50 Hz AC-3e)
Electrical Durability
1.8 Mcycles (57 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V); 1.8 Mcycles (57 A, AC-3e, Less than 440 V)
Features
Built-In Bi-Directional Peak Limiting
Fire Rating
UL 94 V1
Watts Loss
0.9W
Rated Breaking Capacity
1000 A @ 440V
Rated Making Capacity
1000 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Signalling Circuit Frequency
25 to 400 Hz
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Operating Speed
3600 cycles per hr
Hold VA
1.4 VA
Includes Protective Cover
Yes
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Mechanical Durability
6 Mcycles
Switching Voltage
17 V (Signalling Circuit)
Net Weight
1.002 kg
Impulse Withstand Voltage
6 kV
Rated Insulation Volts
690V
Inrush VA
23 VA
Impedance
1.5 mOhm
Fuse Amps
125 A (Type 1 and 2 Power Circuit), 10 A (Signalling Circuit)
Tightening Torque
1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
Application
Motor Control, Resistive Load
Rated Short-Time Withstand Current
110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit), 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Non-Overlap Time
1.5 ms
Environmental Attributes
Mercury Free, Pollution Degree 3
Operating Time
55 to 65 ms (Closing), 20 to 120 ms (Opening)
Mounts On
Plate, Rail
Rated Voltage
690V AC

Description

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a three-pole, non-reversing, electromagnetic switching device (IEC Magnetic Contactor) intended for use in controlling power circuits within specified electrical ratings. It uses a 48–130 V AC/DC coil and includes auxiliary contacts (1 normally open / 1 normally closed) as specified. Terminals for control and power circuits are Screw Clamp and EverLink BTR connectors, respectively. It is part of the TeSys Deca series, rated for operation within the specified voltage and frequency ranges, with an IP20 enclosure rating indicating limited protection against solid objects, and a net weight of 1.002 kg.

Coil Voltage: 48–130 V AC/DC

  • Auxiliary Contacts: includes auxiliary contacts (1 normally open / 1 normally closed) as specified
  • Contactor Style / Series: IEC / TeSys Deca
  • Poles / Phase: 3 / Three
  • Reversing: Non-Reversing
  • Control Circuit Terminals: Screw Clamp Terminals
  • Power Circuit Connectors: EverLink BTR Screw Connectors
  • Maximum Voltage Rating: 690 V AC
  • Frequency: 50/60 Hz
  • Full Load Amps: rated for continuous operation at these current levels under normal conditions
  • Rated Making Capacity: rated capacity under standard test conditions; actual performance may vary based on application specifics
  • Enclosure / IP Rating: has an IP20 enclosure rating indicating limited protection against solid objects
  • Net Weight: 1.002 kg
  • Dimensions: Depth 4.72 in, Height 4.8 in, Width 2.17 in
  • Operating Time: 55–65 ms (Closing), 20–120 ms (Opening)
  • Non-Overlap Time: 1.5 ms
  • Standards: UL Listed; EN/IEC 60947-4-1; EN/IEC 60947-5-1; CCC; CSA; UKCA; others listed
  • Max. Temperature / Operating Temperature: maximum temperature ratings as per manufacturer specifications; actual operating temperatures should be maintained within recommended limits
  • Reversing Capability: No
  • Shock / Vibration: 15 G (Closed), 10 G (Open); 4 G (Closed), 2 G (Open)
  • Watts Loss: 0.9 W
