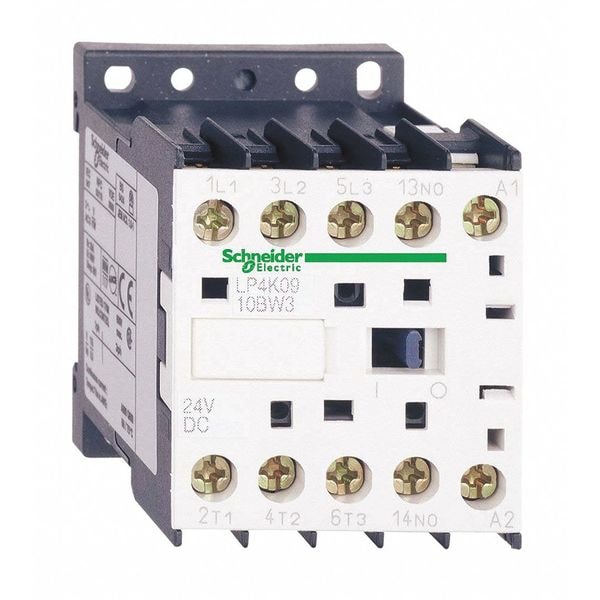

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LP4K0610BW3
  • Zoro # G0568858
product price:
$
88.59
/ea

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
24V DC
Number of Poles
3
Full Load Amps-Inductive
6 A
Reversing Capability
Non-Reversing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LP4K0610BW3
Zoro #
G0568858
UPC #
785901428565
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Depth
2.24 in
Overall Height
2.28 in
Overall Width
1.77 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NO
Coil Voltage
24V DC
Number of Poles
3
Full Load Amps-Inductive
6 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
1
Standards
CSA, UKCA, UL Listed
Enclosure NEMA Rating
No Enclosure
Reversing
No
Series
TeSys K
Frame / Series / Class / Code
TeSys
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Tightening Torque
0.8 to 1.3 Nm
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Rated Breaking Capacity
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
Impedance
3 mOhm
Switching Current
5 mA (Signalling Circuit)
Operating Time
10 to 20 ms (Coil De-Energisation and NO Opening), 30 to 40 ms (Coil Energisation and NO Closing)
Net Weight
0.235 kg
Impulse Withstand Voltage
8 kV
Rated Making Capacity
110 A
Application
Motor Control
Rated Insulation Volts
600/690V
Fuse Amps
25 A (Power Circuit), 10 A (Signalling Circuit)
Control Circuit Voltage Limits
Operational: 0.7 to 1.30 Uc (at 50°C), Drop-Out: 0.1 to 0.7 Uc (at 50°C)
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Operating Speed
3600 cycles per hr
Mechanical Durability
30 Mcycles
Overvoltage Category
CAT III
Switching Voltage
17 V (Signalling Circuit)
NEMA Enclosure Rating
No Enclosure
Frequency
50/60 Hz
Includes Auxiliary Contacts
Yes
Mechanical Operating Durability
30,000,000
Mounting Style
DIN Rail, Plate
Resistance Properties
Insulation Resistant
Full Load Current - Inductive
6 A
Contactor Style
IEC
Maximum Operating Temperature
122 Degrees F
Embedded Surge Suppressor
Yes
Number of Normally Open Main Contacts
3
Maximum Voltage Rating
690V AC
Minimum Operating Temperature
-13 Degrees F
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)

Description

The item is an IEC Magnetic Contactor used for motor control. It is a 3-pole device with a 24 V DC coil, non-reversing operation, and screw clamp terminals. It carries Schneider Electric’s TeSys K designation and uses IEC design standards for this type of device; it does not include auxiliary contacts.

Key features

  • Coil voltage: 24 V DC
  • Poles: 3; Reversing: Non-Reversing
  • Auxiliary contacts: Does not include auxiliary contacts
  • Terminal connection: Screw Clamp
  • Embedded surge suppressor: Yes
  • Enclosure: No Enclosure
  • Mounting style: DIN Rail, Plate; Mounts On: Plate, Rail
  • Maximum voltage rating / Rated voltage: 690 V AC
  • Rated making capacity: 110 A
  • Rated breaking capacity: 110 A @ 415V, 440V, 220–230V, 380–400V; 80 A @ 500V; 70 A @ 660–690V
  • Frequency: 50/60 Hz
  • Full Load Amps (Inductive): 6 A
  • Impedance: 3 mΩ
  • Impulse withstand voltage: 8 kV
  • Fire rating: Complies with the specified fire safety standards listed
  • Standards: Certified to applicable standards including CSA, UKCA, and UL where indicated
  • Frame/Series/Code: TeSys K
  • Overvoltage category: CAT III
  • Dimensions (HxWxD): 2.28 in x 1.77 in x 2.24 in
  • Net weight: 0.235 kg
  • Operating speed: Rated for operation at a maximum of approximately 3600 cycles per hour under standard conditions
  • Temperature range: Max 122°F, Min -13°F
  • Rated insulation voltage: 600/690 V
