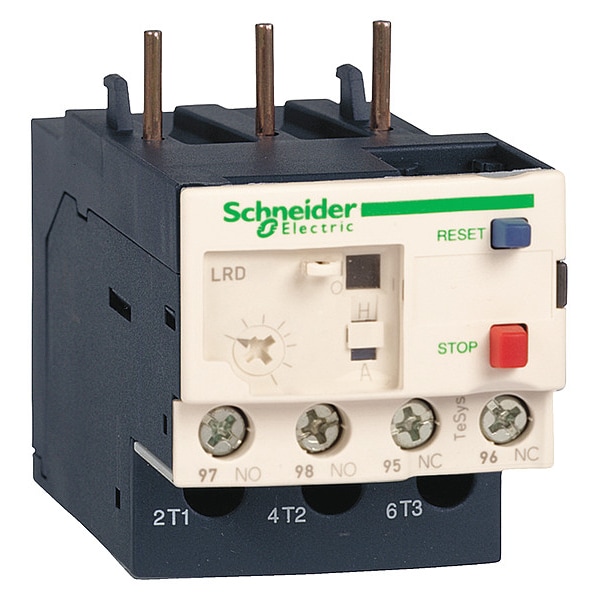

IEC Overload Relay, 1NC/1NO, 2.5 A Min current, 4 A Max current, 690V AC

IEC Overload Relay, 1NC/1NO, 2.5 A Min current, 4 A Max current, 690V AC

Mfr # LR3D08
Zoro # G0853450

$77.65

Free Shipping & Returns

Key Features

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

2.5 A

Maximum Overload Relay Current Setting

4:00 AM

Trip Class

10A

Overload Protection Type

Thermal

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

LR3D08

Zoro #

G0853450

UPC #

785901206859

Country of Origin

France

Dimensions

Height

66 mm

Width

45 mm

Depth

70 mm

Body Height - Relay

2.56 in

Overall Height - Relay

2.6 in

Body Height

2.6 in

Overall Height

2.6 in

Details

Item

IEC Overload Relay

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

2.5 A

Maximum Overload Relay Current Setting

4:00 AM

Trip Class

10A

Overload Protection Type

Thermal

Maximum Voltage Rating

690V AC

Standards

CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1

Sensing Method

Thermal

Number of Poles

Frame / Series / Class / Code

Class 10

Trip Class - Overload

10A

Kit Required for Retrofit Mtg.

Separate Mounting

Use With - Contactors and Starters

Mfr. Series LUA1C Contactors

Thermal Overload Class

class 10A IEC 60947-4-1

Phase Failure Sensitivity

tripping current 130 % of Ir on two phase, the last one at 0

Connections - Terminals

control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end

Network Type

DC || AC

Product Certifications

IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA

Control Type

Red push-button stop || Blue push-button reset

Range

TeSys || TeSys Deca

Associated Fuse Rating

4 A gG signalling circuit || 4 A BS signalling circuit

Tightening Torque

control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals

Ambient Air Temperature For Storage

-60-70°C

Product Name

TeSys LRD || TeSys Deca

Product Compatibility

LC1D38 || LC1D09 || LC1D32 || LC1D25 || LC1D18 || LC1D12

Permissible Current

3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit

Mechanical Robustness

vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7

Device Short Name

LR3D

Relay Application

motor protection

Product Or Component Type

non differential thermal overload relay

Flame Retardance

V1 conforming to UL 94

Dielectric Strength

1.89 kV 50 Hz IEC 60947-1

Ambient Air Temperature For Operation

-20-60°C without derating IEC 60947-4-1

Network Frequency

0 to 400 Hz

Tripping Threshold

1.14 +/- 0.06 Ir IEC 60947-4-1

Climatic Withstand

IACS E10

Thermal Protection Adjustment Range

2.5-4 A

Relay Style

IEC

IP Rating

IP20

Terminal Connection Type

Screw Clamp Terminals

Reset Type

Auto, Manual

Compatible with Series

TeSys Deca

Maximum Operating Temperature

140 Degrees F

Minimum Operating Temperature

-4 Degrees F

Mounting Style

Direct To Contactor

Rated Insulation Voltage

Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1

Rated Operational Voltage

690 V AC 0 to 400 Hz power circuit IEC 60947-4-1

Conventional Free Air Thermal Current

5 A signalling circuit

Description

IEC Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 4 A, Minimum Overload Relay Current Setting 2.5 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
