- MFR #
- DPER10
- Zoro #
- G603481180
- UPC #
- -
- Country of Origin
- France
- Item

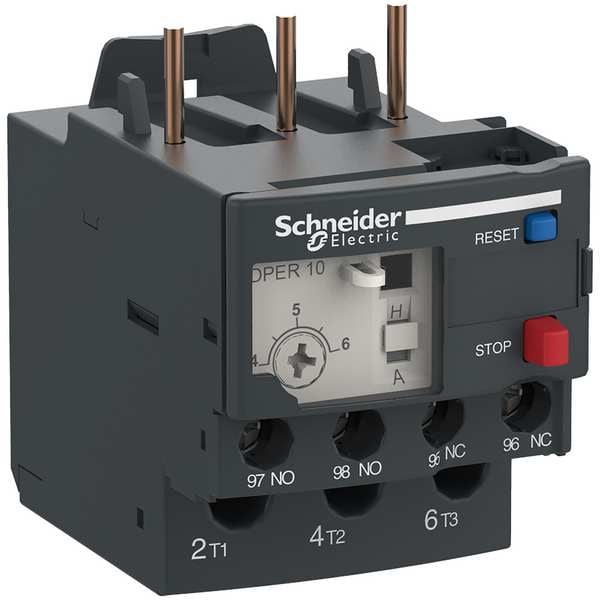

- IEC Overload Relay
- Auxiliary Contact Form
- 1NC/1NO
- Minimum Overload Relay Current Setting
- 4 A
- Maximum Overload Relay Current Setting
- 6 A
- Trip Class
- 10
- Overload Protection Type
- Thermal
- Maximum Voltage Rating
- 690V AC
- Standards
- cUL, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
- Sensing Method
- Thermal
- Trip Class - Overload
- 10
- Frame / Series / Class / Code
- Class 10, Easy TeSys DPER
- Use With - Contactors and Starters
- Contactor DPE09-38
- Overload Relay Current Range
- 4.0 to 6.0 A
- Features
- 400 Hz Power Circuit IEC 60947-4-1, 5 A Signalling Circuit, 690 V AC
- Reset Type - Relay
- Manual
- Kit Required for Retrofit Mtg.
- LAD9R1
- Item - Relay
- IEC Style Overload Relay
- Number of Poles
- 3
- Separate Mounting
- Yes, Additional Items Needed
- Thermal Protection Adjustment Range
- 4-6 A
- Device Short Name
- DPER
- Mounting Support
- separate, with specific accessories || under contactor
- Ambient Air Temperature For Operation
- -20-60°C without derating IEC 60947-4-1
- Phase Failure Sensitivity
- tripping current 130 % of Ir on two phase, the last one at 0
- Vibration Resistance
- 6 gn on plate IEC 60068-2-6
- Permissible Current
- 3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- [Ui] Rated Insulation Voltage
- power circuit 600 V cUL || power circuit 690 V IEC 60947-4-1
- Network Frequency
- 0 to 400 Hz
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
- Range
- Easy TeSys
- Relay Application
- overload protection
- Control Type
- Red push-button stop || Blue push-button reset
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- Surge Withstand
- 6 kV IEC 60801-5
- Ambient Air Temperature For Storage
- -60-70°C
- Product Certifications
- cUL
- [Ue] Rated Operational Voltage
- 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Thermal Overload Class
- class 10 IEC 60947-4-1
- Temperature Compensation
- -20-60°C
- Product Name
- Easy TeSys DPER
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- Tripping Threshold
- 1.14 +/- 0.06 Ir IEC 60947-4-1
- Network Type
- DC || AC
- Product Compatibility
- contactor DPE09-38
- Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-6 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end
- Protection Type
- BS fuse 5 A - control circuit || GB2 circuit breaker 5 A - control circuit || gG fuse 5 A - control circuit
- Product Or Component Type
- thermal overload relay
- Protective Treatment
- TH IEC 60068
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-7
- Mounting Style
- Direct To Contactor
- Maximum Operating Temperature
- 140 Degrees F
- Reset Type
- Auto, Manual
- Terminal Connection Type
- Screw Clamp Terminals
- Compatible with Series
- Easy TeSys
- IP Rating
- IP20
- Minimum Operating Temperature
- -4 Degrees F
- Phase
- Three
- Relay Style
- IEC
- Trip Clss
- 10
