  13. Illum Selector Switch, 2 Pos, 22mm, Red

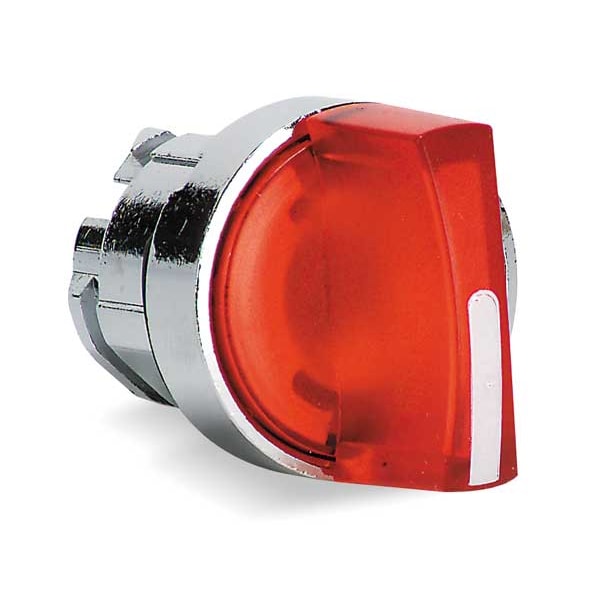

Schneider Electric Illum Selector Switch, 2 Pos, 22mm, Red ZB4BK1243 - main

Illum Selector Switch, 2 Pos, 22mm, Red

  • Mfr # ZB4BK1243

  • Zoro # G1907087

product price: $28.79
/ea

Key Features

Size
22 mm
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained
Cam
No Cam Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BK1243
Zoro #
G1907087
UPC #
785901354116
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Cad Overall Depth
43 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm

Details

Item
Short-Handled Selector Switch
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained
Cam
No Cam Included
Operator Head Material
Plastic
Operator Color
Red
NEMA Rating
1, 13, 2, 3, 4
Position
2
Bezel Material
Chrome Plated Metal
Bezel Color
Chrome
Switch Operation @ Position C
No Third Position
Lamp Type
Led
Switch Operation @ Position A
XO
Switch Operation @ Position B
OX
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
IP Rating
IP66, IP67, IP69, IP69K
Lamp Module Type
Module Not Included
Lamp Module Voltage
Module Not Included
Series
XB4
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Compatibility
universal LED
Head Type
standard
Overvoltage Category
class I IEC 60536
Electrical Composition Code
M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
Ambient Air Temperature For Storage
-40-70°C
Operator Position Information
2 positions 90°
Ambient Air Temperature For Operation
-40-70°C
Protective Treatment
TH
Device Short Name
ZB4
Product Or Component Type
head for illuminated selector switch
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Certifications
DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || GL || BV
Ik Degree Of Protection
IK06 IEC 50102
Shape Of Signaling Unit Head
round
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Mechanical Durability
1000000 cycles
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Operator Profile
red standard handle
Device Presentation
basic element
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Operator Head Color
Red
Number of Positions
2
Hazardous Location Specification
Not Rated
Switch Function @ 3rd Position
No Third Position
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operator Head Type
Short-Handled Knob
Switch Function @ 4th Position
No Fourth Position
Operator Illumination
Illuminated

Description

Short-Handled Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, Lever Type of Operator, Operator Color Red, Operator Head Material Plastic, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 1, 13, 2, 3, 4, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
