  15. Illuminated emergency stop switching off head, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching push pull, with state indicator

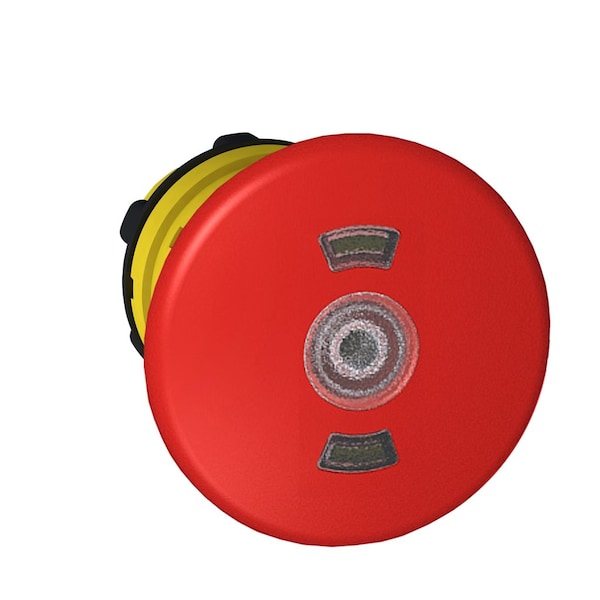

Schneider Electric Illuminated emergency stop switching off head, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching push pull, with state indicator ZB5AT8643M - main

Illuminated emergency stop switching off head, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching push pull, with state indicator

  • Mfr # ZB5AT8643M

  • Zoro # G5956971

product price: $86.79
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained / Momentary
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AT8643M
Zoro #
G5956971
UPC #
-
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Cad Overall Width
40 mm
Mounting Diameter
22 mm
Cad Overall Depth
59 mm
Cad Overall Height
40 mm

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained / Momentary
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
EN 81-1 || GB 14048.5 || UL 508 || EN/ISO 13850 || EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-1
Bezel Material
dark grey plastic
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Storage
-40-70°C
Overvoltage Category
class II IEC 60536
Reset
push-pull
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Head Type
standard
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection
IK05 IEC 50102
Device Short Name
ZB5
Compatibility Code
ZB5
Shape Of Signaling Unit Head
round
Device Presentation
basic element
Type Of Operator
trigger action and mechanical latching with mechanical state indicator
Protective Treatment
TH
Station Name
XALD 1 cut-out || XALK 1 cut-out
Product Or Component Type
head for illuminated emergency stop push-button
Electrical Composition Code
M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Product Compatibility
integral LED
Ip Degree Of Protection
IP54 IEC 60529
Operator Profile
red mushroom Ø 40 mm, unmarked
Mechanical Durability
500000 cycles
Ambient Air Temperature For Operation
-40-70°C
Product Certifications
CSA || BV || LROS (Lloyds register of shipping) || DNV || GL || UL Listed
Range of Product
Harmony XALF, Harmony XB5

Description

Plastic Push Pull E-Stop W/Status Indica
