  15. Illuminated Multi-Head Operator, 22 mm, Rectangular

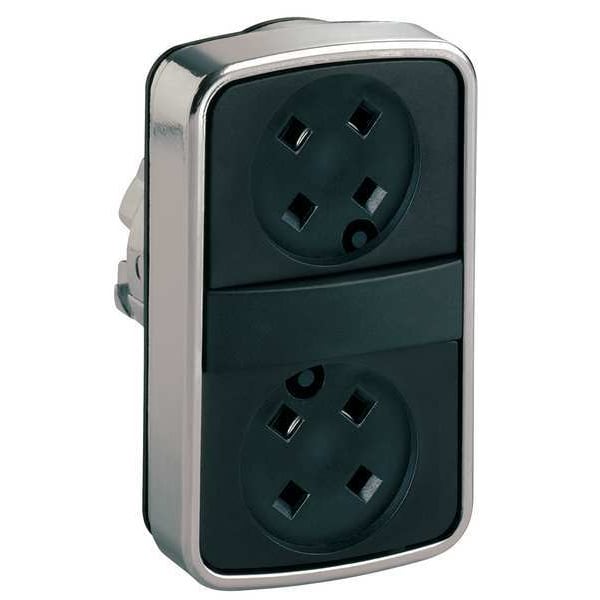

Schneider Electric Illuminated Multi-Head Operator, 22 mm, Rectangular ZB4BA79 - main

Illuminated Multi-Head Operator, 22 mm, Rectangular

  • Mfr # ZB4BA79

  • Zoro # G7210804

product price: $26.99
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BA79
Zoro #
G7210804
UPC #
785901861041
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Overall Height
1.97 in
Overall Width
1.18 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in
Mounting Diameter
22 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Voltage
Module Not Included
Type of Operator
(2) Flush Buttons
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Shape
Rectangular
NEMA Rating
13, 4X
Legend/Background Color
Black
IP Rating
IP66
Features
Visually Distinct at a Distance
Series
XB4
Number of Operators
2
Product Type
Multihead Operators
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F
Bezel Material
Metal
Hazardous Location Specification
Not Rated
Operator Material
Metal
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP67 IEC 60529 || IP69 IEC 60529
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ik Degree Of Protection
IK03 IEC 50102
Electrical Shock Protection Class
class I IEC 60536
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Number of Heads
2
Colour Of Marking
black marking when white caps || white marking when green, red or black caps
Product Certifications
DNV || LROS (Lloyds register of shipping) || UL Listed || CSA || BV || GL
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
Device Short Name
ZB4
Ambient Air Temperature For Operation
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Mechanical Durability
1000000 cycles
Device Presentation
basic element
Product Or Component Type
head for double-headed push-button
Head Type
standard
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Shape Of Signaling Unit Head
rectangular
Operators Description
black pushes without cap
Operator Profile
without cap, 2 flush push-buttons

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (2) Flush Buttons, Head Material Metal, Bezel Material Metal, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Legend/Background Color Black, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508, Features Visually Distinct at a Distance
