Shop SCHNEIDER ELECTRIC

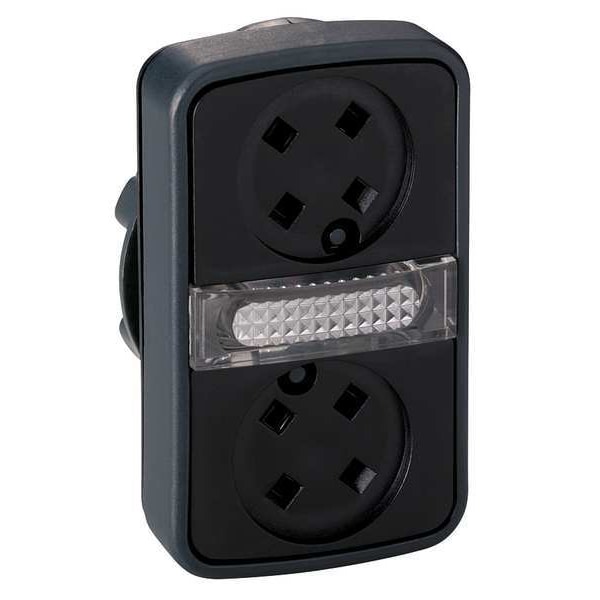

Illuminated Multi-Head Operator, 22 mm, Rectangular

  • Mfr # ZB4BW7A9
  • Zoro # G7254843
product price:
$
37.29
/ea

Key Features

Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Material
Metal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZB4BW7A9
Zoro #
G7254843
UPC #
785901945215
Country of Origin
Korea, Republic of
Item
Multihead Operator
Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Illuminated
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Includes
Light
IP Rating
IP66
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Shape
Rectangular
NEMA Rating
13, 4X
Lamp Type
No Lamp Module Included
Type of Operator
(1) Light, (2) Flush Buttons
Lamp Voltage
Module Not Included
Legend/Background Color
Black
Number of Operators
3
Features
Visually Distinct at a Distance, Snap-Fit Assembly, Withstands Harsh Environments
Series
XB4
Product Type
Multihead Operators
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Lamp Module Type
No Lamp Module Included
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
1
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Metal
Hazardous Location Specification
Not Rated
Bezel Material
Metal
Operating Temperature - Minimum
-40 Degrees F
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Product Certifications
LROS (Lloyds register of shipping) || DNV || GL || UL Listed || BV || CSA
Mechanical Durability
1000000 cycles
Operators Description
black pushes without cap
Operator Profile
2 flush push-buttons - 1 central pilot light, without cap
Shape Of Signaling Unit Head
rectangular
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Compatibility
integral LED
Device Presentation
basic sub-assemblies
Product Or Component Type
head for illuminated double-headed push-button
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Head Type
standard
Ambient Air Temperature For Operation
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Device Short Name
ZB4
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Number of Heads
2
Ik Degree Of Protection
IK06 IEC 50102
Electrical Shock Protection Class
class I IEC 61140
Protective Treatment
TH
Ambient Air Temperature For Storage
-40-70°C

Description

Multihead Operator, 22 mm, Momentary/Momentary/Momentary, Type of Operator (1) Light, (2) Flush Buttons, Head Material Metal, Bezel Material Metal, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Legend/Background Color Black, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508, Includes Light
