  15. Illuminated Multi-Head Operator, 22 mm, Rectangular

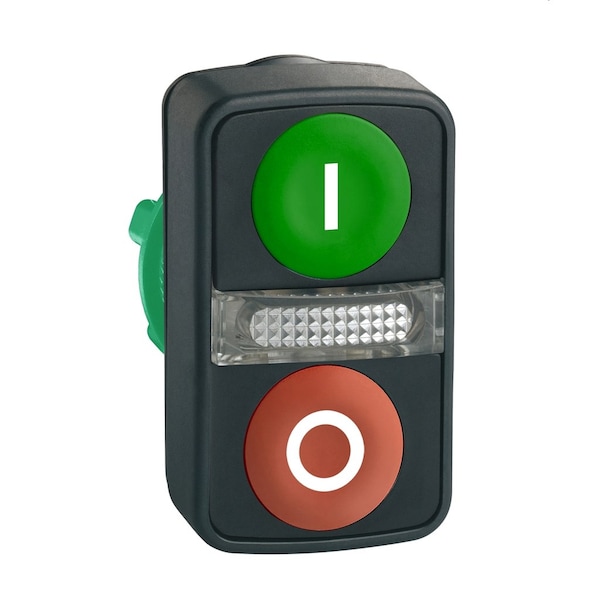

Schneider Electric Illuminated Multi-Head Operator, 22 mm, Rectangular ZB5AW7A3741 - main

Illuminated Multi-Head Operator, 22 mm, Rectangular

  • Mfr # ZB5AW7A3741

  • Zoro # G3554564

product price: $46.99
/ea

Key Features

Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green; Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW7A3741
Zoro #
G3554564
UPC #
785901878223
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Height
50 mm
Cad Overall Width
30 mm
Mounting Diameter
22 mm
Cad Overall Depth
30 mm
Overall Width
1.18 in
Manufacturer Warranty Length
18 mo
Overall Height
1.97 in
Overall Depth
1.18 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Illuminated
Head Color
Green; Red
Head Material
Plastic
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Shape
Rectangular
Legend
I, O
Lamp Type
No Lamp Module Included
Type of Operator
(2) Flush Buttons
Legend/Background Color
White/Green, White/Red
NEMA Rating
13, 4X
Number of Heads
2
Lamp Voltage
Module Not Included
IP Rating
IP66
Series
XB5
Lamp Module Type
No Lamp Module Included
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Number of Operators
3
Bezel Material
Plastic
Legend Color
White
Product Type
Multihead Operators
Operators Description
green ''I'' - red ''O''
Ambient Air Temperature For Operation
-25-70°C
Electrical Shock Protection Class
class II IEC 60536
Head Type
standard
Ip Degree Of Protection
IP66 || IP67 || IP69 || IP69K
Ambient Air Temperature For Storage
-40-70°C
Operator Profile
2 flush push-buttons - 1 central pilot light, green flush, I white) || red flush, O white)
Device Presentation
basic sub-assemblies
Mechanical Durability
1000000 cycles
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Compatibility
integral LED
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection
IK05 IEC 50102
Shape Of Signaling Unit Head
rectangular
Station Name
XALD 1 cut-out
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Certifications
CSA || DNV || UL Listed || BV || LROS (Lloyds register of shipping) || GL
Device Short Name
ZB5
Product Or Component Type
head for illuminated double-headed push-button
Legend Background Color
Green/Red
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
1
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Material
Plastic
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Not Rated

Description

Multihead Operator, 22 mm, Momentary/Momentary/Momentary, Type of Operator (2) Flush Buttons, Head Material Plastic, Bezel Material Plastic, Color Green/Red, NEMA Rating 13, 4X, IP Rating IP66, Legend I, O, Legend/Background Color White/Green, White/Red, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
