  15. Illuminated Push Button, 16 mm, 1NC, Red

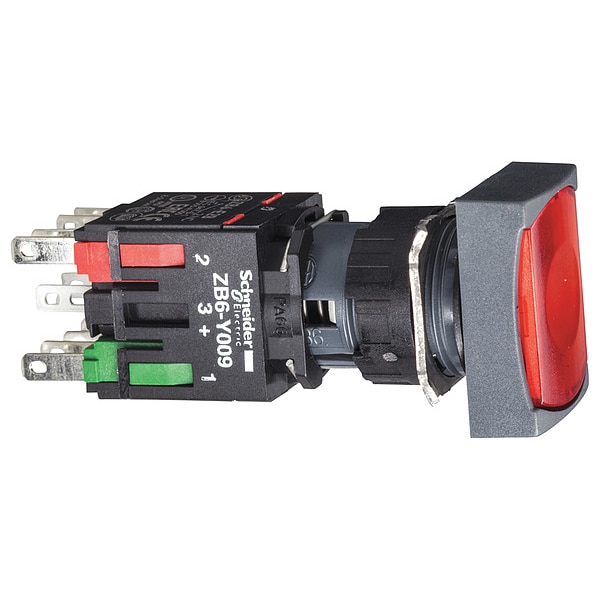

Schneider Electric Illuminated Push Button, 16 mm, 1NC, Red XB6DW4B2B - main

Illuminated Push Button, 16 mm, 1NC, Red

  • Mfr # XB6DW4B2B

  • Zoro # G3462768

product price: $36.75
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
16 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6DW4B2B
Zoro #
G3462768
UPC #
785901325598
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
16 mm
Size
16 mm
Manufacturer Warranty Length
18 mo
Overall Width
0.94 in
Overall Height
0.71 in
Overall Depth
2.24 in
Cad Overall Height
18 mm
Mounting Diameter
16 mm
Cad Overall Width
24 mm
Cad Overall Depth
57 mm

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Quick Connect
Standards
CCC, CSA, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, GOST, JIS C4520, JIS C852, REACH, RoHS, UL Listed, WEEE
Lamp Module Type
Full Voltage
Contact Form
1NC
Lamp Module Voltage
12 to 24V AC/DC
Lamp Type
LED
Color
Red
Legend Markings
No Legend
Legend/Background Color
No Legend
Contact Rating
0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC
NEMA Rating
13, 4, 4X
Bezel
Plastic
Number of Operators
1
Bezel Material
Plastic
Lamp Voltage
12 to 24V AC/DC
NEMA Contact Rating Designation
B300/R300
Voltage
12 to 24V AC/DC
Basic Material
Plastic
Type of Operator
Rectangular Flush Button
IP Rating
IP65
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Series
XB6
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
Product Type
Push Button Operators
Operating Temperature - Maximum
158 Degrees F
Operator Voltage Rating - Maximum
250 V AC/DC
Lamp Voltage - Maximum
24 V AC/DC
NEMA Enclosure Rating
13, 4, 4X
Number of Indicator Lights
0
Operating Temperature - Minimum
-13 Degrees F
Operator Material
Plastic
Contacts Type And Composition
1 NC
Surge Withstand
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Contacts Material
silver alloy (Ag/Ni)
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Signalling Type
steady
Operating Position
any position
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Supply Voltage Limits
6-30 V AC/DC
Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Light Source
LED
Terminals Description Iso N°1
(21-22)NC
Ambient Air Temperature For Storage
-40-70°C
Electromagnetic Emission
class B IEC 55011
Operator Profile
red flush, unmarked
Bulb Base
integral LED
Device Short Name
XB6
Resistance To Fast Transients
2 kV IEC 61000-4-4
Short-Circuit Protection
6 A cartridge fuse gG
Electrical Reliability
Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
[Us] Rated Supply Voltage
12 to 24 V AC/DC
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Positive Opening
with EN/IEC 60947-5-1 appendix K
Electrical Shock Protection Class
class II IEC 61140
Contact Type
1NC
Product Or Component Type
complete illuminated push-button
Operating Force
4.5 N NC changing electrical state
Current Consumption
15 mA
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Protective Treatment
TC
Ambient Air Temperature For Operation
-25-70°C
Shape Of Signaling Unit Head
rectangular
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Contact Operation
slow-break
Product Certifications
UL || CSA || CCC || GOST
Operating Travel
2 mm NC changing electrical state) || 3.5 mm total travel)
Ip Degree Of Protection
IP65 IEC 60529

Description

Illuminated Push Button, 16 mm, Momentary Action, Rectangular Flush Button Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Plastic, Color Red, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC, NEMA Contact Rating Designation B300/R300, Number of Operators 1, NEMA Rating 13, 4, 4X, IP Rating IP65, Legend Not Applicable, Legend/Background Color No Legend
