  15. Illuminated Push Button, 16 mm, DPDT, White

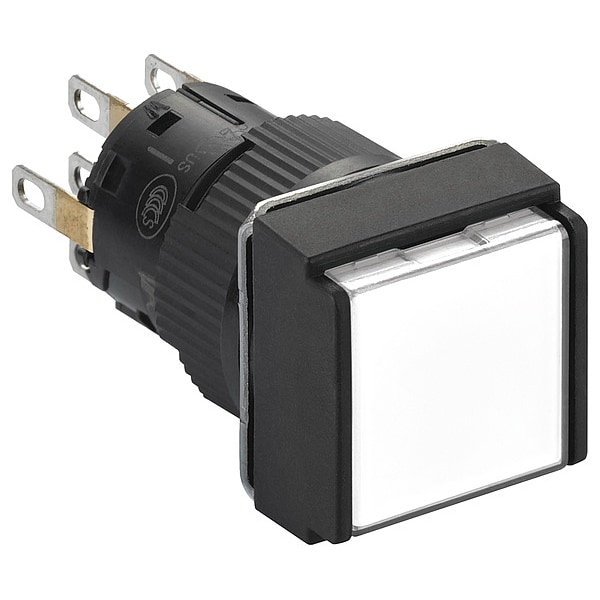

Schneider Electric Illuminated Push Button, 16 mm, DPDT, White XB6ECF1B2P - main

Illuminated Push Button, 16 mm, DPDT, White

  • Mfr # XB6ECF1B2P

  • Zoro # G3459146

product price: $15.49
/ea
Sold in multiples of 5 for $77.45

Key Features

Push Button Style
Flush
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Illuminated
Panel Cutout Diameter
16 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6ECF1B2P
Zoro #
G3459146
UPC #
785901151425
Country of Origin
China

Dimensions

Panel Cutout Diameter
16 mm
Height
18 mm
Depth
40 mm
Width
18 mm
Size
16 mm
Manufacturer Warranty Length
18 mo
Overall Width
0.71 in
Overall Depth
1.57 in
Overall Height
0.71 in
Mounting Diameter
16 mm

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Illuminated
Head Color
White
Head Material
Plastic
Terminal Connection
Quick Connect
Standards
CCC, CSA C22.2 No.14, cURus, IEC 60947-1, IEC 60947-5-1, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
NEMA Contact Rating Designation
AC-12/DC-12
Color
White
Bezel
Plastic
Type of Operator
Square Flush Button
Number of Operators
1
Legend/Background Color
No Legend
Lamp Module Type
Full Voltage
Voltage
24 V DC
Basic Material
Plastic
Legend Markings
No Legend
Lamp Type
LED
IP Rating
IP65
Bezel Material
Plastic
Lamp Module Voltage
24V DC
Lamp Voltage
24V DC
Contact Form
DPDT
DC Contact Rating
0.15 A @ 125 V, 0.2 A @ 125 V, 0.7 A @ 24 V, 1 A @ 24 V
Series
XB6E
AC Contact Rating
0.5 A @ 240 V, 1 A @ 120 V
Product Type
Push Button Operators
NEMA Enclosure Rating
1, 12
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
24 V DC
Operating Temperature - Maximum
131 Degrees F
Operator Material
Plastic
Operating Temperature - Minimum
14 Degrees F
Lamp Voltage - Maximum
24 V DC
Mechanical Operating Durability
2.50 x 10^5
Electrical Durability
50000 cycles, DC-12, 1 A 30 V IEC 60947-5-1 appendix C || 50000 cycles, AC-12, 0.5 A 125 V IEC 60947-5-1 appendix C || 50000 cycles, AC-12, 0.5 A 250 V IEC 60947-5-1 appendix C
Mechanical Durability
250000 cycles
[Us] Rated Supply Voltage
24 V DC polarised
Shape Of Signaling Unit Head
square
Product Or Component Type
illuminated monolithic push-button
Current Consumption
10 mA
Ambient Air Temperature For Storage
-40-70°C
Terminals Description Iso N°1
(13-14-11-12)OF || (23-24-21-22)OF
Overvoltage Category
II IEC 60536
Short-Circuit Protection
3 A cartridge fuse gG
Operator Profile
white flush
Electromagnetic Compatibility
electrostatic discharge immunity test 8 kV IEC 61000-4-2
Marking
CE
Shock Resistance
20 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ith] Conventional Free Air Thermal Current
3 A
Device Short Name
XB6E
Operating Position
any position
Signalling Type
steady
Product Certifications
cURus || CCC
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Vibration Resistance
1 mm 5-55 Hz)IEC 60068-2-6 || 9 gn 5-55 Hz)IEC 60068-2-6
Contact Type
2C/O
[Ui] Rated Insulation Voltage
250 V 2)IEC 60947-1
Electrical Reliability
Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Light Source
integral LED
Contact Operation
snap action
Operating Force
1.3 N C/O changing electrical state
Ip Degree Of Protection
IP65 IEC 60529
Connections - Terminals
Faston connectors 2.8 x 0.5 mm || soldered connectors
Ambient Air Temperature For Operation
-10-55°C
Contacts Type And Composition
2 C/O
Contacts Material
gold-flashed silver

Description

Illuminated Push Button, 16 mm, Maintained Action, Square Flush Button Type of Operator, Head Material Plastic, Contact Form DPDT, Bezel Plastic, Color White, NEMA Contact Rating Designation AC-12/DC-12, Number of Operators 1, IP Rating IP65, Legend Not Applicable, Legend/Background Color No Legend, Standards CCC, CSA C22.2 No.14, cURus, IEC 60947-1, IEC 60947-5-1, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE, Terminal Connection Quick Connect
