  15. Illuminated Push Button, 16 mm, SPDT, Green

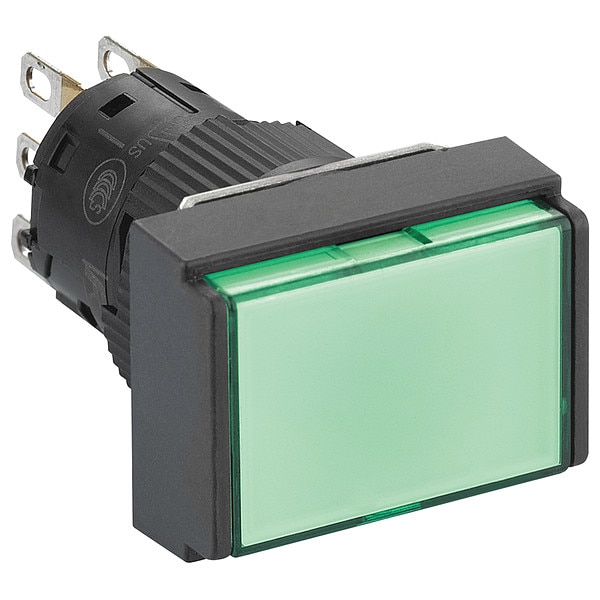

Schneider Electric Illuminated Push Button, 16 mm, SPDT, Green XB6EDW3B1P - main

Illuminated Push Button, 16 mm, SPDT, Green

  • Mfr # XB6EDW3B1P

  • Zoro # G3980998

product price: $17.95
/ea
Sold in multiples of 50 for $897.50

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
16 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6EDW3B1P
Zoro #
G3980998
UPC #
785901124450
Country of Origin
China

Dimensions

Panel Cutout Diameter
16 mm
Size
16 mm
Overall Height
0.71 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.58 in
Overall Width
0.94 in
Mounting Diameter
16 mm

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Quick Connect
Standards
CCC, CSA C22.2 No.14, cURus, IEC 60947-1, IEC 60947-5-1, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Contact Type
1C/O
Contact Form
SPDT
Number of Operators
1
Bezel
Plastic
Voltage
24 V DC
DC Contact Rating
0.15 A @ 125 V, 0.2 A @ 125 V, 0.7 A @ 24 V, 1 A @ 24 V
Legend Markings
No Legend
Lamp Type
LED
Lamp Module Voltage
24V DC
Lamp Voltage
24V DC
NEMA Contact Rating Designation
AC-12/AC-13/DC-12/DC-13
IP Rating
IP65
Lamp Module Type
Full Voltage
Series
XB6E
Contact Rating
0.15A @ 125 V DC, 0.2A @ 125 V DC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC
Legend/Background Color
No Legend
AC Contact Rating
0.5 A @ 240 V, 1 A @ 120 V
Color
Green
Basic Material
Plastic
Type of Operator
Rectangular Flush Button
Bezel Material
Plastic
Product Type
Push Button Operators
Number of Indicator Lights
0
NEMA Enclosure Rating
1, 12
Operating Temperature - Maximum
131 Degrees F
Mechanical Operating Durability
1.00 x 10^6
Operator Voltage Rating - Maximum
250 V AC
Operator Material
Plastic
Lamp Voltage - Maximum
24 V DC
Operating Temperature - Minimum
14 Degrees F
Product Certifications
cURus || CCC
[Ie] Rated Operational Current
1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IEC 60947-5-1 || 0.15 A 125 V, DC-13 EN/IEC 60947-5-1
Device Short Name
XB6E
Electrical Durability
100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C
Contacts Material
gold-flashed silver
Ip Degree Of Protection
IP65 IEC 60529
Product Or Component Type
illuminated monolithic push-button
Contact Operation
snap action
Vibration Resistance
1 mm 10-55 Hz)IEC 60068-2-6
Short-Circuit Protection
2 A cartridge fuse gG
Connections - Terminals
insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket
Mechanical Durability
1000000 cycles
Shape Of Signaling Unit Head
rectangular
Ambient Air Temperature For Operation
-10-55°C
[Ith] Conventional Free Air Thermal Current
3 A fast connector socket) || 5 A
[Us] Rated Supply Voltage
24 V DC polarised
Operating Position
any position
Operator Profile
green flush
Contacts Type And Composition
1 C/O
Shock Resistance
10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Marking
CE
Ambient Air Temperature For Storage
-40-70°C
Current Consumption
10 mA
Signalling Type
steady
Contact Resistance
50 mOhm 1/6 V
Light Source
integral LED

Description

Illuminated Push Button, 16 mm, Momentary Action, Rectangular Flush Button Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Plastic, Color Green, Contact Rating 0.15A @ 125 V DC, 0.2A @ 125 V DC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC, NEMA Contact Rating Designation AC-12/AC-13/DC-12/DC-13, Number of Operators 1, IP Rating IP65, Legend Not Applicable, Legend/Background Color No Legend
