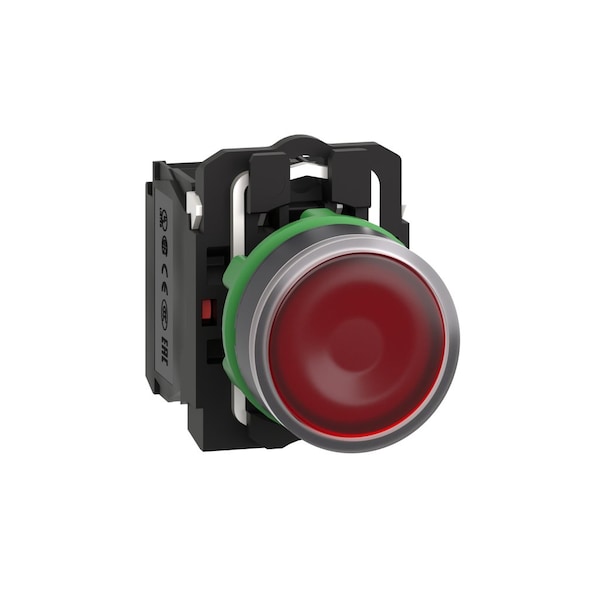

Illuminated Push Button, 22 mm, 1NO/1NC, Round, Red

  • Mfr # XB5AW34B5

  • Zoro # G6127877

product price:
$
85.49
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
XB5AW34B5
Zoro #
G6127877
UPC #
785901384465
Country of Origin
Korea, Republic of
Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Replacement Lamp
6HZ50
Lamp Module Type
Full Voltage
Lamp Module Voltage
24V AC/DC
Color
Red
Lens Material
Plastic
Shape
Round
Contact Form
1NO/1NC
IP Rating
IP66, IP67, IP69, IP69K
Lamp Type
LED
Voltage
24V AC/V DC
Lamp Voltage
24V AC/V DC
Type of Operator
Flush Button
Contact Rating
10A @ 600V AC
Lens Type
Smooth
Bezel
Double-Insulated Plastic
Body Material
plastic
NEMA Rating
13, 4, 4X
Basic Material
Plastic
Bezel Material
Plastic
Number of Operators
1
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Series
XB5
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Features
Quick Assembly, Quick Disassembly
Product Type
Push Button Operators
Surge Withstand
1 kV IEC 61000-4-5
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
Tightening Torque
0.8-1.2 N.m EN 60947-1
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K || IP67
Contact Operation
slow-break
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Head Type
standard
Mechanical Durability
10000000 cycles
Contacts Type And Composition
1 NO + 1 NC
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Device Presentation
complete product
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Protective Treatment
TH
Contacts Usage
standard contacts
Device Short Name
XB5
Contacts Material
silver alloy (Ag/Ni)
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Cap/Operator Or Lens Colour
red
Positive Opening
with EN/IEC 60947-5-1 appendix K
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Fixing Collar Material
plastic
Resistance To Fast Transients
2 kV IEC 61000-4-4
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Signalling Type
steady
Electromagnetic Emission
class B IEC 55011
Ambient Air Temperature For Operation
-40-70°C
Operating Force
3.5 N NC changing electrical state || 3.8 N
Light Source
universal LED
Operator Profile
red flush, unmarked
Ambient Air Temperature For Storage
-40-70°C
Ik Degree Of Protection
IK05 IEC 50102
Current Consumption
18 mA
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Operator Additional Information
with plain lens
Shape Of Signaling Unit Head
round
Bulb Base
integral LED
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Product Certifications
LROS (Lloyds register of shipping) || UL Listed || CSA || BV || GL || DNV
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Or Component Type
illuminated push-button
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Overvoltage Category
class II IEC 60536
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Operating Temperature - Minimum
-40 Degrees F
Number of Indicator Lights
0
Resistance Properties
Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
13, 4X
Operating Temperature - Maximum
158 Degrees F
Operator Voltage Rating - Maximum
600 V AC/DC
Mechanical Operating Durability
1.00 x 10^7
Operator Material
Plastic
Lamp Voltage - Maximum
24 V AC/DC

Description

Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Double-Insulated Plastic, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable
