  15. Illuminated Push Button, 22 mm, 2NO, Green

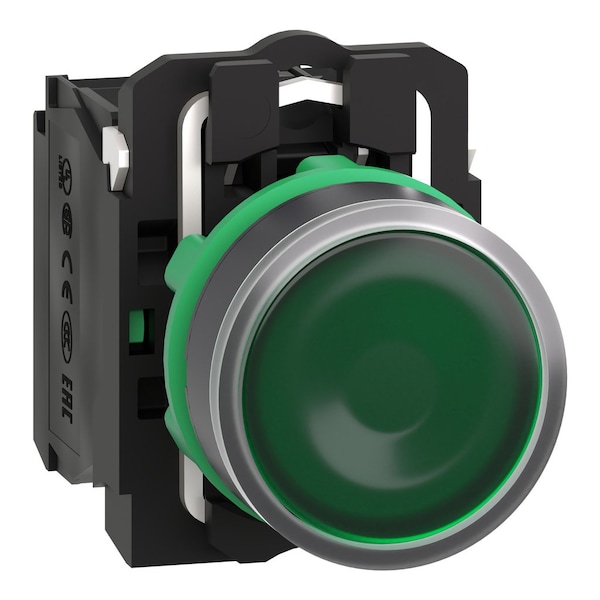

Schneider Electric Illuminated Push Button, 22 mm, 2NO, Green XB5AW33B3 - main

Illuminated Push Button, 22 mm, 2NO, Green

  • Mfr # XB5AW33B3

  • Zoro # G3458464

product price: $91.89
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5AW33B3
Zoro #
G3458464
UPC #
785901654827
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Width
30 mm
Depth
57 mm
Height
42 mm
Size
22 mm
Mounting Diameter
22 mm
Overall Width
1.18 in
Overall Depth
2.24 in
Overall Height
1.65 in
Manufacturer Warranty Length
18 mo

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Lamp Type
LED
NEMA Contact Rating Designation
A600/Q600
Lamp Module Voltage
24V AC/DC
Color
Green
Basic Material
Plastic
NEMA Rating
13, 4X
Legend/Background Color
No Legend
Type of Operator
Flush Button
IP Rating
IP66, IP67, IP69, IP69K
Number of Operators
1
Voltage
24V AC/DC
Contact Form
2NO
Contact Type
2NO
Lamp Module Type
Full Voltage
Bezel
Chrome Plated Metal
Lamp Voltage
24 V AC/DC
Contact Rating
0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V, 1.2A @ 600V, 3A @ 240V, 6 A @ 120V
Bezel Material
Plastic
Legend Markings
No Legend
Series
XB5
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Push Button Operators
Positive Opening
with EN/IEC 60947-5-1 appendix K
Contacts Material
silver alloy (Ag/Ni)
Electromagnetic Emission
class B IEC 55011
Contacts Usage
standard contacts
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Light Source
universal LED
Contact Operation
slow-break
Surge Withstand
1 kV IEC 61000-4-5
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
complete product
Fixing Collar Material
plastic
Cap/Operator Or Lens Colour
green
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Bulb Base
integral LED
Ik Degree Of Protection
IK05 IEC 50102
Contacts Type And Composition
2 NO
Current Consumption
18 mA
Tightening Torque
0.8-1.2 N.m EN 60947-1
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Operator Additional Information
with plain lens
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Operating Force
3.5 N NC changing electrical state || 3.8 N
Resistance To Fast Transients
2 kV IEC 61000-4-4
Ambient Air Temperature For Operation
-40-70°C
Signalling Type
steady
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Overvoltage Category
class II IEC 60536
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
Ambient Air Temperature For Storage
-40-70°C
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Mechanical Durability
10000000 cycles
Product Or Component Type
illuminated push-button
Head Type
standard
Operator Profile
green flush, unmarked
Protective Treatment
TH
Shape Of Signaling Unit Head
round
Device Short Name
XB5
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K || IP67
Product Certifications
BV || CSA || UL Listed || GL || LROS (Lloyds register of shipping) || DNV
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Operator Material
Plastic
NEMA Enclosure Rating
13, 4X
Lamp Voltage - Maximum
24 V AC/DC
Operator Voltage Rating - Maximum
600 V AC/DC
Operating Temperature - Maximum
158 Degrees F
Mechanical Operating Durability
1.00 x 10^7
Resistance Properties
Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
0
Operating Temperature - Minimum
-40 Degrees F

Description

Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 2NO, Bezel Chrome Plated Metal, Color Green, Contact Rating 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V, 1.2A @ 600V, 3A @ 240V, 6 A @ 120V, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Legend/Background Color No Legend
