  15. Illuminated Push Button, 22mm, White

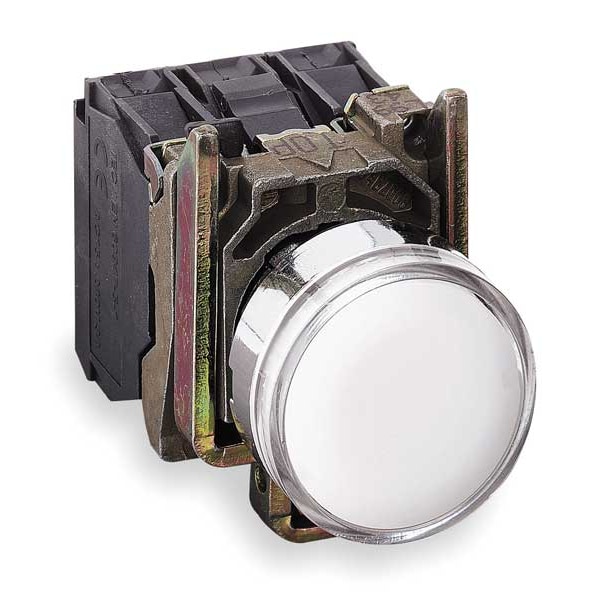

Schneider Electric Illuminated Push Button, 22mm, White XB4BW31B5 - main

Illuminated Push Button, 22mm, White

  • Mfr # XB4BW31B5

  • Zoro # G1279397

product price: $99.89
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Color
White
Action
Momentary
Lamp Type
LED
Type of Operator
Round Guarded Button
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4BW31B5
Zoro #
G1279397
UPC #
785901381433
Country of Origin
France

Dimensions

Size
22 mm
Length
57 mm
Height
47 mm
Width
30 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm
Overall Width
1.18 in
Overall Depth
2.24 in
Overall Height
1.85 in

Details

Item
Illuminated Push Button
Voltage
24V AC/DC
Color
White
Action
Momentary
Lamp Type
LED
Type of Operator
Round Guarded Button
Head Material
Metal
Shape
Round
Terminal Connection
Screw Clamp
Contact Form
1NO/1NC
Bezel
Chrome Plated Metal
Lamp Module Type
Full Voltage
Lamp Module Voltage
24V AC/DC
Basic Material
Metal
Standards
Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Number of Operators
1
Lamp Voltage
24V AC/DC
NEMA Contact Rating Designation
A600/Q600
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Contact Type
1NO/1NC
IP Rating
IP66, IP67, IP69, IP69K
Contact Rating
10A @ 600V AC
Average Life
100000 hr
Product Type
Push Button Operators
Type
Steady Signal
Head Color
White
Operating Temperature - Minimum
-40 Degrees F
Mechanical Operating Durability
1.00 x 10^7
Lamp Voltage - Maximum
24 V AC/DC
Series
XB4
Number of Indicator Lights
0
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Operator Voltage Rating - Maximum
600 V AC/DC
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Metal
Bezel Material
Chrome
Operator Illumination
Illuminated
Push Button Style
Flush
Features
Quick Assembly, Quick Disassembly
NEMA Enclosure Rating
13, 4X
Operating Temperature - Maximum
158 Degrees F

Description

Illuminated Push Button, 22 mm, Momentary Action, Round Guarded Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color White, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable
