  15. Illuminated Push Button, 30 mm, 1NO/1NC, Green

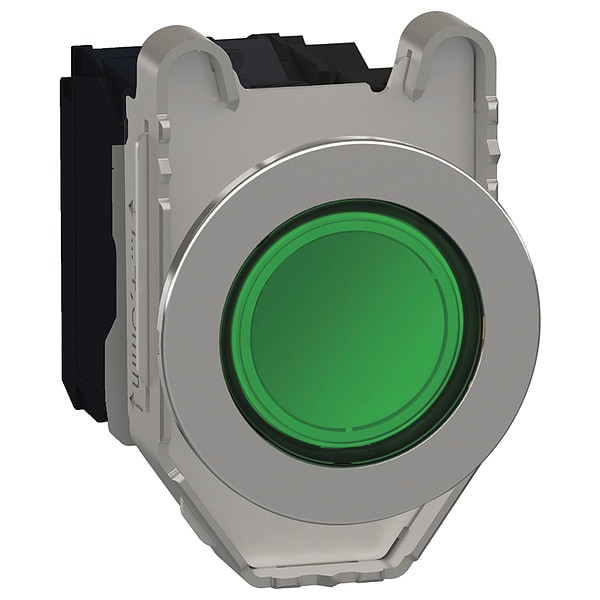

Schneider Electric Illuminated Push Button, 30 mm, 1NO/1NC, Green XB4FW33G5 - main

Illuminated Push Button, 30 mm, 1NO/1NC, Green

  • Mfr # XB4FW33G5

  • Zoro # G3456312

product price: $92.69
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4FW33G5
Zoro #
G3456312
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
30 mm
Depth
55 mm
Width
36.6 mm
Height
47 mm
Size
30 mm
Mounting Diameter
30.5 mm
Overall Width
1.44 in
Overall Height
1.85 in
Overall Depth
2.17 in
Manufacturer Warranty Length
18 mo

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CCC, CE, CSA, CSA C22.2 No.14, EAC, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508, UL Listed, WEEE
Contact Form
1NO/1NC
Contact Rating
0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V, 1.2A @ 600V, 3A @ 240V, 6 A @ 120V
Number of Operators
1
Lamp Module Type
Full Voltage
Bezel
Chrome Plated Metal
Lamp Module Voltage
110 to 120V AC
Bezel Material
Chrome
Lamp Voltage
110 to 120V AC/DC
Contact Type
1NO/1NC
NEMA Contact Rating Designation
A600/Q600
Color
Green
Legend/Background Color
No Legend
Lamp Type
LED
Type of Operator
Flush Button
Voltage
110 to 120V AC
Basic Material
Metal
IP Rating
IP66, IP67, IP69, IP69K
Legend Markings
No Legend
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Features
Spring Return
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Series
XB4
Product Type
Push Button Operators
Device Presentation
complete product
Positive Opening
with EN/IEC 60947-5-1 appendix K
Bulb Base
integral LED
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Protective Treatment
TH
Ambient Air Temperature For Storage
-40-70°C
Fixing Collar Material
zamak
Contact Operation
slow-break
Light Source
universal LED
Operating Force
3.5 N NC changing electrical state || 3.8 N
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Tightening Torque
0.8-1.2 N.m EN 60947-1
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Shape Of Signaling Unit Head
round
Device Mounting
built-in
Operator Additional Information
with plain lens
Fixing Mode
by screws 0.8 N.m
Surge Withstand
1 kV IEC 61000-4-5
Product Certifications
UL Listed || CSA || CCC || EAC
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Supply Voltage Limits
100-132 V AC
Ik Degree Of Protection
IK06 IEC 50102
Mechanical Durability
10000000 cycles
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Product Or Component Type
illuminated push-button
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Operation
-40-70°C
[Us] Rated Supply Voltage
110 to 120 V AC 50/60 Hz
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Current Consumption
14 mA
Signalling Type
steady
Contacts Usage
standard contacts
Device Short Name
XB4F
Electrical Shock Protection Class
class I IEC 60536
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Head Type
built-in-flush
Electrical Reliability
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Contacts Type And Composition
1 NO + 1 NC
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Contacts Material
silver alloy (Ag/Ni)
Operator Profile
green flush
Resistance To Fast Transients
2 kV IEC 61000-4-4
Electromagnetic Emission
class B IEC 55011
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Mechanical Operating Durability
1.00 x 10^7
Lamp Voltage - Maximum
120 V AC
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
600 V AC/DC
NEMA Enclosure Rating
12, 13, 4, 4X
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Operator Material
Metal
Resistance Properties
Vibration Resistant

Description

Illuminated Push Button, 30 mm, Momentary Action, Flush Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Green, Contact Rating 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V, 1.2A @ 600V, 3A @ 240V, 6 A @ 120V, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Legend/Background Color No Legend
