  15. Illuminated Push Button, 30 mm, 1NO/1NC, Red

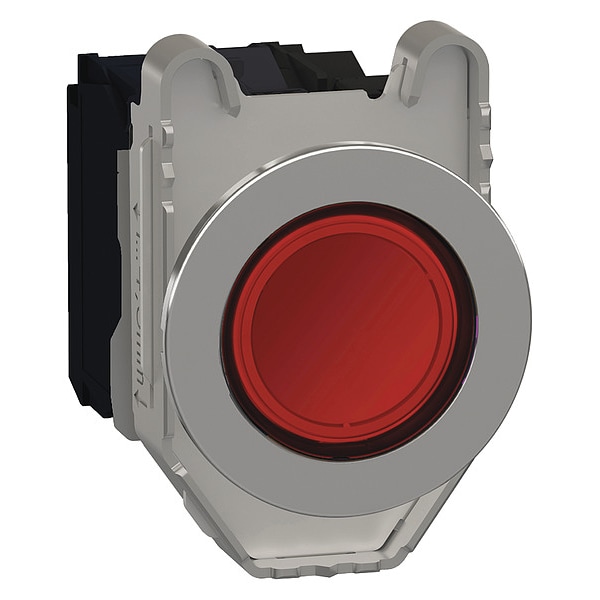

Schneider Electric Illuminated Push Button, 30 mm, 1NO/1NC, Red XB4FW34B5 - main

Illuminated Push Button, 30 mm, 1NO/1NC, Red

  • Mfr # XB4FW34B5

  • Zoro # G3461456

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4FW34B5
Zoro #
G3461456
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Depth
55 mm
Height
47 mm
Width
36.6 mm
Mounting Diameter
30.5 mm
Manufacturer Warranty Length
18 mo
Overall Height
1.85 in
Overall Width
1.44 in
Overall Depth
2.17 in

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CCC, CE, CSA, CSA C22.2 No.14, EAC, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508, UL Listed, WEEE
Contact Form
1NO/1NC
Lamp Type
LED
Lamp Voltage
24V AC/DC
Bezel
Chrome Plated Metal
Voltage
24V AC/DC
Bezel Material
Chrome
Number of Operators
1
Legend Markings
No Legend
Color
Red
Type of Operator
Flush Button
Lamp Module Type
Full Voltage
Contact Type
1NO/1NC
Contact Rating
0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V, 1.2A @ 600V, 3A @ 240V, 6 A @ 120V
IP Rating
IP66, IP67, IP69, IP69K
Legend/Background Color
No Legend
Basic Material
Metal
Lamp Module Voltage
24V AC/DC
NEMA Contact Rating Designation
A600/Q600
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Series
XB4
Features
Spring Return
Product Type
Push Button Operators
Electrical Reliability
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Ik Degree Of Protection
IK06 IEC 50102
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Contacts Material
silver alloy (Ag/Ni)
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ambient Air Temperature For Operation
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Resistance To Fast Transients
2 kV IEC 61000-4-4
Positive Opening
with EN/IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Fixing Collar Material
zamak
Protective Treatment
TH
Device Mounting
built-in
Operator Additional Information
with plain lens
Bulb Base
integral LED
Head Type
built-in-flush
Electrical Shock Protection Class
class I IEC 60536
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Product Or Component Type
illuminated push-button
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Electromagnetic Emission
class B IEC 55011
Tightening Torque
0.8-1.2 N.m EN 60947-1
Operator Profile
red flush
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Product Certifications
UL Listed || CSA || CCC || EAC
Signalling Type
steady
Contact Operation
slow-break
Contacts Usage
standard contacts
Ambient Air Temperature For Storage
-40-70°C
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
Light Source
universal LED
Shape Of Signaling Unit Head
round
Current Consumption
18 mA
Contacts Type And Composition
1 NO + 1 NC
Fixing Mode
by screws 0.8 N.m
Operating Force
3.5 N NC changing electrical state || 3.8 N
Device Short Name
XB4F
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Device Presentation
complete product
Mechanical Durability
10000000 cycles
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Surge Withstand
1 kV IEC 61000-4-5
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Operator Voltage Rating - Maximum
600 V AC/DC
Operator Material
Metal
Number of Indicator Lights
0
Resistance Properties
Vibration Resistant
Mechanical Operating Durability
1.00 x 10^7
Lamp Voltage - Maximum
24 V AC/DC
NEMA Enclosure Rating
12, 13, 4, 4X
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F

Description

Illuminated Push Button, 30 mm, Momentary Action, Flush Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Red, Contact Rating 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V, 1.2A @ 600V, 3A @ 240V, 6 A @ 120V, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Legend/Background Color No Legend
