  15. Illuminated Push Button, 30 mm, Not Applicable, Red

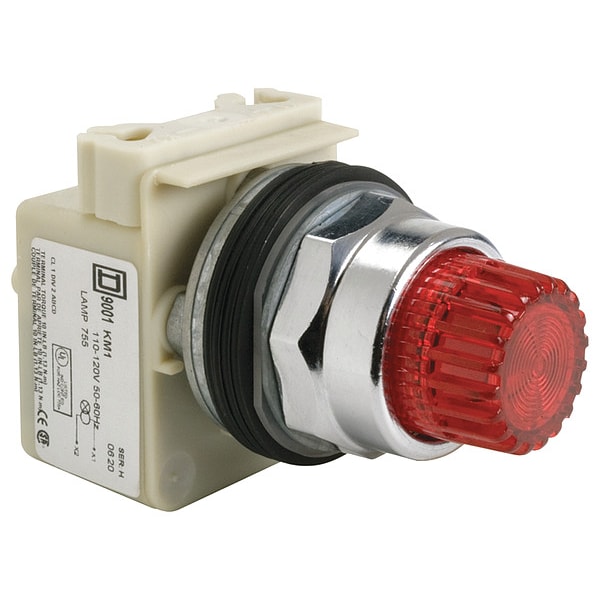

Schneider Electric Illuminated Push Button, 30 mm, Not Applicable, Red 9001K2L35LRR - main

Illuminated Push Button, 30 mm, Not Applicable, Red

  • Mfr # 9001K2L35LRR

  • Zoro # G3460433

product price: $159.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K2L35LRR
Zoro #
G3460433
UPC #
785901714293
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Overall Height
3.07 in
Overall Depth
1.62 in
Manufacturer Warranty Length
18 mo
Overall Width
2.13 in
Mounting Diameter
30 mm

Details

Item
Illuminated Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Color
Red
Bezel Material
Metal
Legend/Background Color
No Legend
Basic Material
Metal
NEMA Rating
1, 12, 13, 2, 3, 3R, 4
Features
Self-Grounding, Finger-Safe Terminals
Lamp Type
LED
IP Rating
IP66
Number of Operators
1
Lamp Module Type
Full Voltage
Bezel
Chrome Plated Metal
Series
9001K
Product Type
Push Button Operators
Operating Temperature - Minimum
-13 Degrees F
Number of Indicator Lights
0
Lamp Voltage - Maximum
28 V AC/DC
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Mechanical Operating Durability
5.00 x 10^6
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Operating Temperature - Maximum
158 Degrees F
Operator Voltage Rating - Maximum
600 V AC
Operator Material
Metal
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Contacts Type And Composition
without contact block
Operator Profile
red projecting, unmarked, projecting
Device Short Name
9001K
Ip Degree Of Protection
IP66 IEC 60529
Ambient Air Temperature For Operation
-25-70°C
Shape Of Signaling Unit Head
round
Bulb Base
BA 9s
Light Source Colour
red
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Ambient Air Temperature For Storage
-40-70°C
Operating Position
any position
Protective Treatment
TC
[Us] Rated Supply Voltage
24 to 28 V
Product Or Component Type
head for illuminated push-button
Product Certifications
UL 508 || NEMA
Electrical Shock Protection Class
class II IEC 61140
Light Block Supply
direct 24 to 28 V AC/DC
Mechanical Durability
5000000 cycles
Shock Resistance
50 gn IEC 60068-2-27
Light Source
Red LED
Cap/Operator Or Lens Colour
red
Type Of Operator
spring return

Description

Illuminated Push Button, 30 mm, Momentary Action, Head Material Metal, Contact Form Not Applicable, Bezel Chrome Plated Metal, Color Red, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, IP Rating IP66, Legend Not Applicable, Legend/Background Color No Legend, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE, Terminal Connection Screw Clamp, Features Self-Grounding, Finger-Safe Terminals
