  15. Illuminated Push Button, 30 mm, SPDT, Green

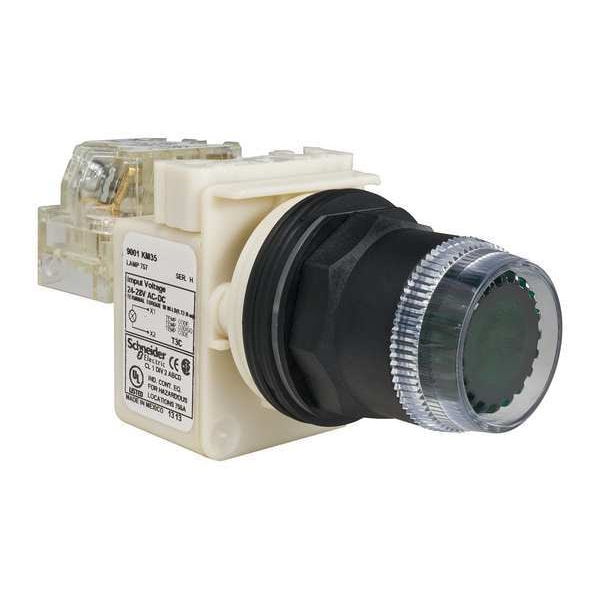

Schneider Electric Illuminated Push Button, 30 mm, SPDT, Green 9001SK1L35GH13 - main

Illuminated Push Button, 30 mm, SPDT, Green

  • Mfr # 9001SK1L35GH13

  • Zoro # G6373875

product price: $202.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SK1L35GH13
Zoro #
G6373875
UPC #
785901040422
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Manufacturer Warranty Length
18 mo
Mounting Diameter
30 mm

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
IP Rating
IP66
Contact Rating
10A @ 600V AC
NEMA Contact Rating Designation
A600/Q600
Lamp Type
Incandescent
Contact Type
1NO/1NC
Lamp Module Voltage
24V AC/DC
Contact Form
SPDT
Replacement Lamp
Mfr .No. 25501-010-02
Lamp Voltage
24V AC/DC
Lamp Module Type
Full Voltage
Voltage
24 to 28V AC/DC
Color
Green
Basic Material
Plastic
Number of Operators
1
Bezel
Corrosion Resistant Thermoplastic
Type of Operator
Round Guarded Button
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Series
9001SK
Bezel Material
Plastic
Product Type
Push Button Operators
Lamp Voltage - Maximum
28 V AC/DC
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-13 Degrees F
Operator Voltage Rating - Maximum
600 V AC
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Mechanical Operating Durability
5.00 x 10^6
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Number of Indicator Lights
0
Operator Material
Plastic
Operating Temperature - Maximum
158 Degrees F
Shape Of Screw Head
cross slotted
Cap/Operator Or Lens Colour
green
[Ie] Rated Operational Current
0.55 A 125 V, DC-13, A600-Q600 NEMA
Ambient Air Temperature For Storage
-40-70°C
Operator Profile
flush, green flush
[Ith] Conventional Free Air Thermal Current
10 A
Ambient Air Temperature For Operation
-25-70°C
Contacts Type And Composition
1 C/O
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Electrical Shock Protection Class
class II IEC 61140
Contacts Material
silver alloy contacts
Rated Breaking Capacity
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 240 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1
Bulb Base
BA 9s
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
Mechanical Durability
5000000 cycles
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Light Source
incandescent
Ip Degree Of Protection
IP66 IEC 60529
Device Short Name
9001SK
Connections - Terminals
screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
Product Certifications
NEMA || UL 508
[Icm] Rated Short-Circuit Making Capacity
0.1 kA 240 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 125 V DC-13, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 60 kA 250 V DC-13, 7200 VA
Operating Position
any position
Light Block Supply
direct, full voltage
[Us] Rated Supply Voltage
24 to 28 V, 24 to 28 V AC/DC
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
Device Presentation
complete product
Protective Treatment
TC
Shock Resistance
50 gn IEC 60068-2-27
Contact Operation
standard
Product Or Component Type
illuminated push-button
Operator Additional Information
plastic guard
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Guarded Button Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Corrosion Resistant Thermoplastic, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
