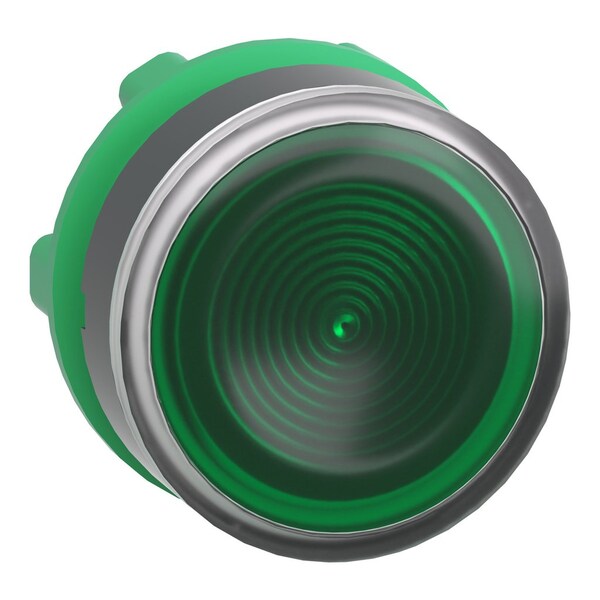

Illuminated Push Button, Flush, Maintained / Momentary Action, Push Release, Illuminated, Green

Illuminated Push Button

Flush

Maintained / Momentary

Push

Illuminated

Green

UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, GB 14048.5, CSA C22.2 No 14, JIS C8201-1

dark grey plastic

spring return

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

IK05 conforming to EN 50102

flush push integral LED

-40-70°C

high ambient lighting environment

round

5 gn 2-500 Hz)IEC 60068-2-6

class II IEC 60536

green

-40-70°C

basic sub-assemblies

unmarked

TC

ZB5

NEMA 13, NEMA 4X

head for illuminated push-button

7000000 Pa 55°C 0.1 m

green flush, unmarked

10000000 cycles

M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED

Harmony XB5

XALD 1...5 cut-outs, XALK 2...5 cut-outs

with grooved lens

standard

IP66 IEC 60529, IP67, IP69, IP69K
