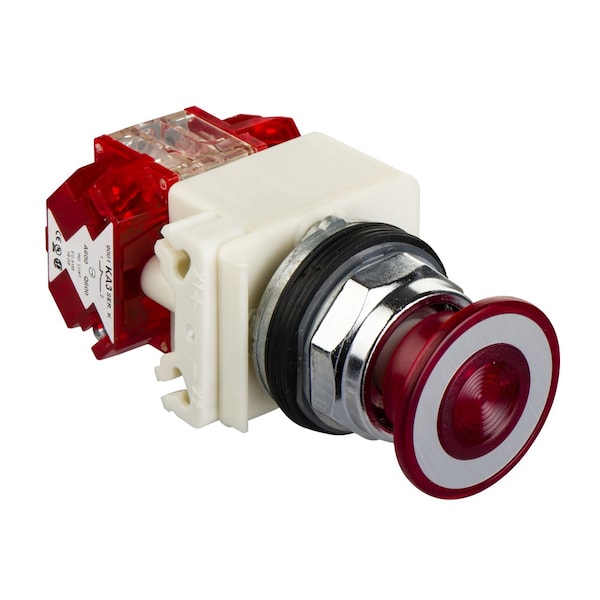

Illuminated push-button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, 120V, 1 NC late + 1 NC

Illuminated Push Button

Mushroom Head

Momentary Pull / Maintained Push

Illuminated

Red

Plastic

Screw Clamp

EN/IEC 60947-5-1, JIS C 4520, CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C 852

metal

BA 9s

7 gn 2-500 Hz)IEC 60068-2-6

push-pull

round

2 positions

screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1

120 V AC/DC

0.55 A 125 V, DC-13, A600-Q600 NEMA

class II IEC 61140

50 gn IEC 60068-2-27

with IEC 60947-5-2

silver alloy contacts

-25-70°C

1 NC late break + 1 NC, 1 NC late-break || 1 NC slow-break

10 A cartridge fuse IEC 60947-5-1

TC

screw-on plastic

12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA

red mushroom Ø 41 mm, unmarked

1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

2.5 kV IEC 60947-1

10 A

(11-12)NC_OL || (21-22)NC

complete product

direct

any position

0.8-0.8 N.m IEC 60947-1

250 V 3)IEC 60947-1

NEMA || UL 508

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4

incandescent

IP66 IEC 60529

5000000 cycles

9001K

-40-70°C

illuminated push-button

cross slotted

red

Push/Pull
