- MFR #
- XB4BW3545
- Zoro #
- G300905316
- UPC #
- -
- Country of Origin
- United States
- Item

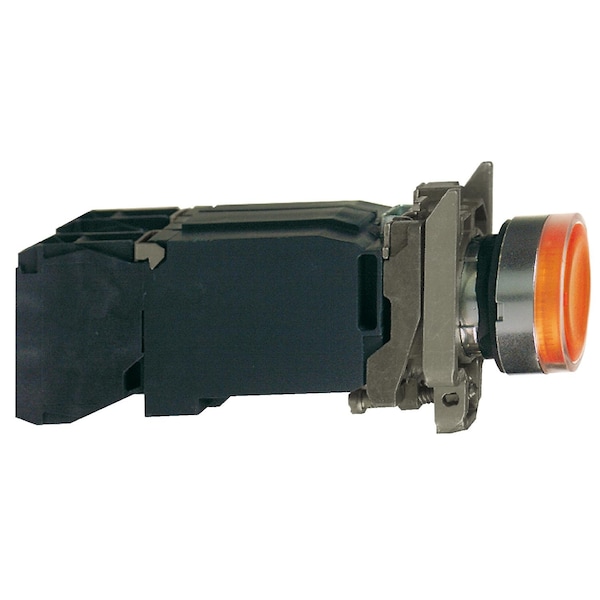

- Illuminated Push Button
- Push Button Style
- Flush
- Action
- Momentary
- Operator Illumination
- Illuminated
- Head Color
- Orange
- Terminal Connection
- Screw Clamp
- Standards
- IEC 60947-5-5, CSA C22.2 No 14, IEC 60947-1, UL 508, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, JIS C8201-1
- Type of Operator
- spring return
- Bezel Material
- chromium plated metal
- Fixing Collar Material
- zamak
- Contacts Usage
- standard contacts
- Nema Degree of Protection
- NEMA 13, NEMA 4X
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Ambient Air Temperature For Operation
- -40-55°C
- Light Block Supply
- via integral transformer 1.2 VA 6 V
- Positive Opening
- with IEC 60947-5-1 appendix K
- Range of Product
- Harmony XB4
- Device Presentation
- complete product
- Signalling Type
- steady
- Ik Degree of Protection
- IK06 conforming to IEC 50102
- Operator Profile
- orange flush
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Operator Additional Information
- with plain lens
- Terminals Description Iso N°1
- (13-14)NO, (21-22)NC
- Shape of Signaling Unit Head
- round
- Ip Degree of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- [Us] Rated Supply Voltage
- 220...240 V AC 50/60 Hz
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Ambient Air Temperature For Storage
- -40-70°C
- Mechanical Durability
- 10000000 cycles
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Contacts Material
- silver alloy (Ag/Ni)
- Head Type
- standard
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Electrical Shock Protection Class
- class I IEC 60536
- Operating Force
- 3.5 N NC changing electrical state, 3.8 N
- Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Contacts Type And Composition
- 1 NO + 1 NC
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Operating Travel
- 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
- Protective Treatment
- TH
- Product or Component Type
- illuminated push-button
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Contact Operation
- slow-break
- Shape of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Device Short Name
- XB4
- Resistance To High Pressure Washer
- 7000000 Pa 55°C 0.1 m
- Light Source
- incandescent
- Bulb Base
- BA 9s
