  15. Illuminated Push Button Operator, 22 mm, Blue

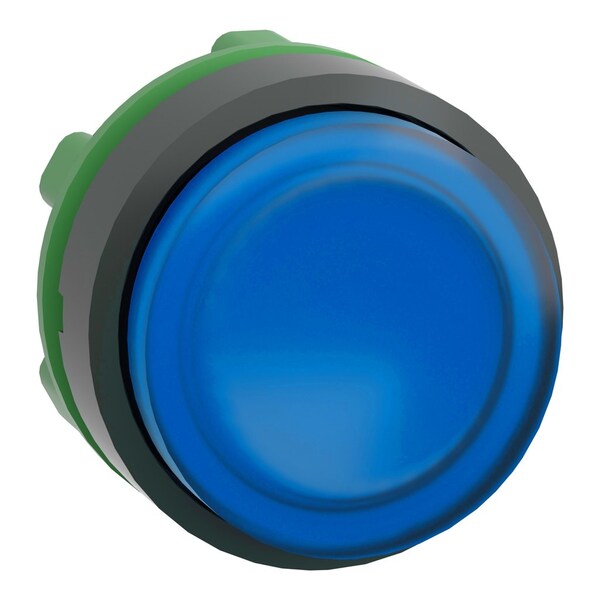

Schneider Electric Illuminated Push Button Operator, 22 mm, Blue ZB5AW163 - main

Illuminated Push Button Operator, 22 mm, Blue

  • Mfr # ZB5AW163

  • Zoro # G2518485

product price: $10.79
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW163
Zoro #
G2518485
UPC #
785901388180
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Mounting Diameter
22 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Cad Overall Depth
33 mm
Overall Height
1.14 in
Overall Depth
1.3 in
Manufacturer Warranty Length
18 mo
Overall Width
1.14 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
Blue
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
NEMA Rating
13, 4X
Lamp Type
No Lamp Module Included
Lamp Voltage
Dependent on Module Used
IP Rating
IP66
Color
Blue
Lamp Module Voltage
Module Not Included
Basic Material
Plastic
Type of Operator
Extended Button
Bezel
Plastic
Lamp Module Type
No Lamp Module Included
Bezel Material
Plastic
Series
XB5
Features
Snap-Fit Assembly, Visually Distinct at a Distance, Withstands Harsh Environments
Number of Operators
1
Ik Degree Of Protection
IK05 EN 50102
Operator Additional Information
with plain lens
Group Of Product
proj push integral LED
Operator Profile
blue projecting, unmarked
Product Certifications
BV || LROS (Lloyds register of shipping) || UL Listed || DNV || GL || CSA
Head Type
standard
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Marking
unmarked
Device Presentation
basic sub-assemblies
Cap/Operator Or Lens Colour
blue
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Operation
-40-70°C
Protective Treatment
TC
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Overvoltage Category
class II IEC 60536
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Mechanical Durability
10000000 cycles
Shape Of Signaling Unit Head
round
Device Short Name
ZB5
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Compatibility
universal LED
Product Or Component Type
head for illuminated push-button
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Ambient Air Temperature For Storage
-40-70°C
Operator Material
Plastic
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Indicator Lights
1
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Product Type
Push Button Operators
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Hazardous Location Specification
Not Rated

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Blue, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
