  15. Illuminated Push Button Operator, 22 mm, Red

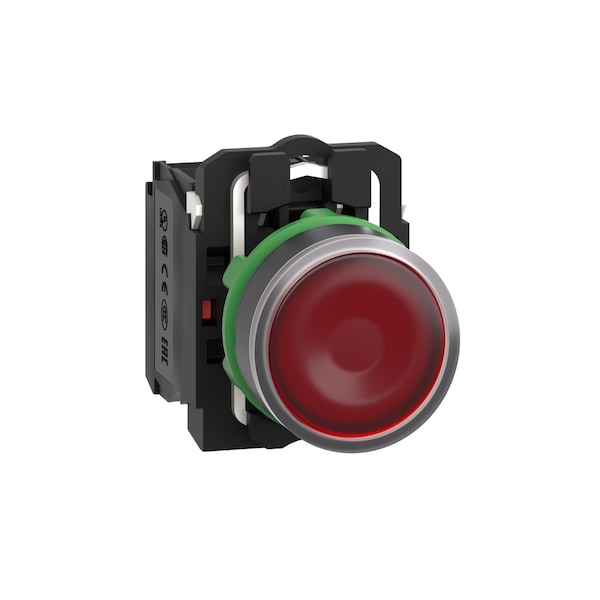

Schneider Electric Illuminated Push Button Operator, 22 mm, Red XB5AW34G5 - main

Illuminated Push Button Operator, 22 mm, Red

  • Mfr # XB5AW34G5

  • Zoro # G6123817

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5AW34G5
Zoro #
G6123817
UPC #
785901384571
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Width
30 mm
Height
42 mm
Depth
57 mm
Mounting Diameter
22 mm
Overall Height
1.65 in
Overall Width
1.18 in
Overall Depth
2.24 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
EN/IEC 60947-1, Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Color
Red
Lamp Type
LED
Type of Operator
Flush Button
Lamp Module Voltage
120V AC
Bezel
Plastic
NEMA Rating
13, 4, 4X
Lamp Module Type
Full Voltage
Basic Material
Plastic
IP Rating
IP66, IP67, IP69, IP69K
Lamp Voltage
120V AC
Replacement Lamp
Mfr. No. ZBVG4
Bezel Material
Plastic
Number of Operators
1
Series
XB5
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Shape Of Signaling Unit Head
round
Mechanical Durability
10000000 cycles
Bulb Base
integral LED
Head Type
standard
Electromagnetic Emission
class B IEC 55011
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Surge Withstand
1 kV IEC 61000-4-5
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Overvoltage Category
class II IEC 60536
Resistance To Fast Transients
2 kV IEC 61000-4-4
Current Consumption
14 mA
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Tightening Torque
0.8-1.2 N.m EN 60947-1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Contact Operation
slow-break
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Cap/Operator Or Lens Colour
red
Ambient Air Temperature For Storage
-40-70°C
Operating Force
3.5 N NC changing electrical state || 3.8 N
Operator Additional Information
with plain lens
Ambient Air Temperature For Operation
-40-70°C
Protective Treatment
TH
Device Short Name
XB5
Signalling Type
steady
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ik Degree Of Protection
IK05 IEC 50102
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Fixing Collar Material
plastic
Positive Opening
with EN/IEC 60947-5-1 appendix K
[Us] Rated Supply Voltage
110 to 120 V AC 50/60 Hz
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Or Component Type
illuminated push-button
Device Presentation
complete product
Contacts Type And Composition
1 NO + 1 NC
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Supply Voltage Limits
100-132 V AC
Product Certifications
BV || CSA || UL Listed || LROS (Lloyds register of shipping) || GL || DNV
Contacts Material
silver alloy (Ag/Ni)
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Light Source
universal LED
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Operator Profile
red flush, unmarked
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K || IP67
Contacts Usage
standard contacts
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Operator Material
Plastic
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Lamp Voltage - Maximum
120 V AC
Hazardous Location Specification
Not Rated
Number of Indicator Lights
1
Product Type
Push Button Operators

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards EN/IEC 60947-1, Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
