  15. Illuminated Push Button Operator, 22 mm, Red

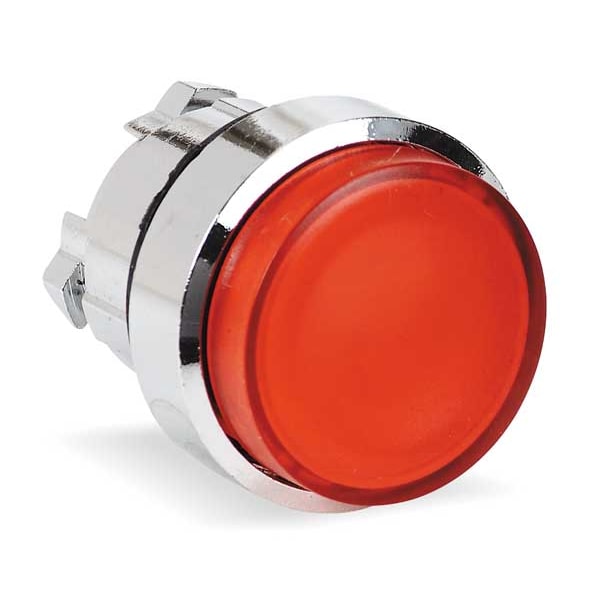

Schneider Electric Illuminated Push Button Operator, 22 mm, Red ZB4BH43 - main

Illuminated Push Button Operator, 22 mm, Red

  • Mfr # ZB4BH43

  • Zoro # G2307182

product price: $15.59
/ea

Key Features

Push Button Style
Extended
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BH43
Zoro #
G2307182
UPC #
785901380344
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Width
29 mm
Cad Overall Depth
33 mm
Mounting Diameter
22 mm
Cad Overall Height
29 mm
Overall Height
1.14 in
Manufacturer Warranty Length
18 mo
Overall Width
1.14 in
Overall Depth
1.3 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Head Color
Red
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Type
No Lamp Module Included
Basic Material
Metal
Lamp Voltage
Dependent on Module Used
Bezel
Chrome Plated Metal
IP Rating
IP66
NEMA Rating
13, 4X
Lamp Module Type
No Lamp Module Included
Lamp Module Voltage
Module Not Included
Color
Red
Type of Operator
Extended Button
Bezel Material
Metal
Series
XB4
Number of Operators
1
Features
Prevents Growth of Bacteria, Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness, Clear Boot
Electrical Shock Protection Class
class I IEC 60536
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Composition Code
M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Product Compatibility
universal LED
Product Certifications
CSA || UL Listed || BV || LROS (Lloyds register of shipping) || DNV || GL
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head
round
Device Short Name
ZB4
Protective Treatment
TH
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Product Or Component Type
head for illuminated push-button
Head Type
standard
Operator Profile
red projecting, unmarked
Device Presentation
basic element
Mechanical Durability
500000 cycles
Ambient Air Temperature For Storage
-40-70°C
Overvoltage Category
class I IEC 60536
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ik Degree Of Protection
IK05 IEC 50102
Ambient Air Temperature For Operation
-40-70°C
Ip Degree Of Protection
IP69 || IP69K || IP67 IEC 60529
Number of Indicator Lights
1
Operating Temperature - Minimum
-40 Degrees F
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated
Operating Temperature - Maximum
158 Degrees F
Operator Material
Metal
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Description

Extended Push Button, 22 mm, Maintained, Type of Operator Extended Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Red, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
