  15. Illuminated Push Button Operator, 22 mm, Red

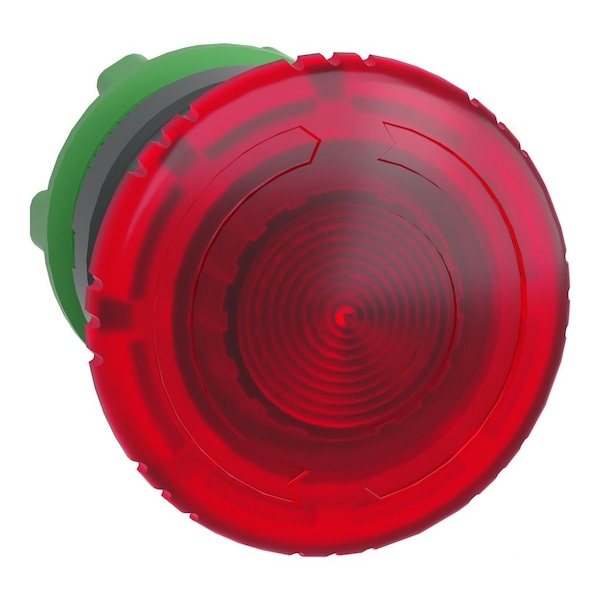

Schneider Electric Illuminated Push Button Operator, 22 mm, Red ZB5AW743 - main

Illuminated Push Button Operator, 22 mm, Red

  • Mfr # ZB5AW743

  • Zoro # G4556596

product price: $50.19
/ea

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW743
Zoro #
G4556596
UPC #
785901609780
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Size
22 mm
Cad Overall Height
40 mm
Cad Overall Depth
50 mm
Mounting Diameter
22 mm
Cad Overall Width
40 mm
Overall Height
1.57 in
Overall Width
1.57 in
Overall Depth
1.97 in
Manufacturer Warranty Length
18 mo

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Voltage
Dependent on Module Used
Bezel
Plastic
Color
Red
IP Rating
IP66
Type of Operator
40mm Mushroom Head
Lamp Module Voltage
Module Not Included
Lamp Type
No Lamp Module Included
NEMA Rating
13, 4X
Basic Material
Plastic
Lamp Module Type
No Lamp Module Included
Bezel Material
Plastic
Features
Withstands Harsh Environments
Number of Operators
1
Series
XB5
Mechanical Durability
300000 cycles
Reset
turn to release
Product Compatibility
universal LED
Protective Treatment
TC
Head Type
standard
Ik Degree Of Protection
IK05 EN 50102
Overvoltage Category
class II IEC 60536
Cap/Operator Or Lens Colour
red
Station Name
XALD 1 cut-out || XALK 1 cut-out
Device Short Name
ZB5
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shape Of Signaling Unit Head
round
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Marking
unmarked
Operator Profile
red mushroom Ø 40 mm, unmarked
Product Or Component Type
head for illuminated emergency switching off push-button
Product Certifications
UL Listed || LROS (Lloyds register of shipping) || BV || GL || CSA || DNV
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Device Presentation
basic sub-assemblies
Ambient Air Temperature For Operation
-40-70°C
Electrical Composition Code
M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Group Of Product
emer swi off illum turn to rel
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Hazardous Location Specification
Not Rated
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Product Type
Emergency Stop Push Buttons
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Indicator Lights
1
Operator Material
Plastic

Description

Emergency Stop Push Button, 22 mm, Maintained, Type of Operator 40mm Mushroom Head, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
