  15. Illuminated Push Button Operator, 22 mm, Red

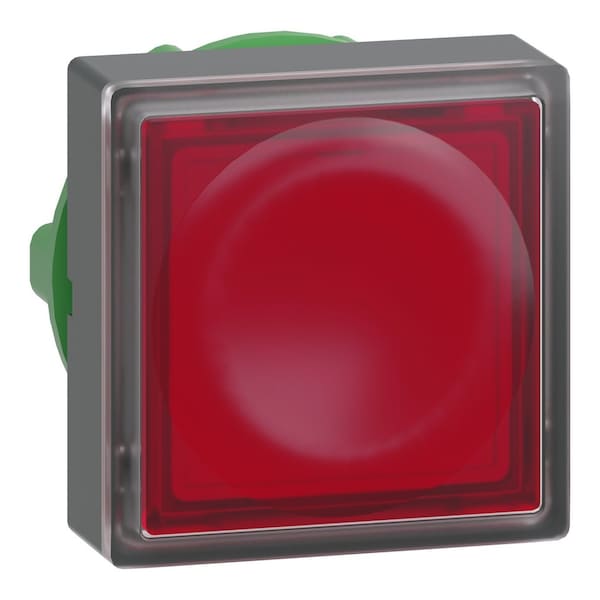

Schneider Electric Illuminated Push Button Operator, 22 mm, Red ZB5CW343 - main

Illuminated Push Button Operator, 22 mm, Red

  • Mfr # ZB5CW343

  • Zoro # G7192315

product price: $24.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5CW343
Zoro #
G7192315
UPC #
785901387008
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Overall Depth
1.18 in
Overall Width
1.18 in
Overall Height
1.18 in
Manufacturer Warranty Length
18 mo
Mounting Diameter
22 mm
Cad Overall Depth
30 mm
Cad Overall Width
30 mm
Cad Overall Height
30 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Type
No Lamp Module Included
Color
Red
Type of Operator
Square Flush Button
Lamp Module Voltage
Module Not Included
Lamp Voltage
Dependent on Module Used
Basic Material
Plastic
NEMA Rating
13, 4X
IP Rating
IP66
Features
Snap-Fit Assembly, Withstands Harsh Environments
Series
XB5
Number of Operators
1
Lamp Module Type
No Lamp Module Included
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Product Type
Push Button Operators
Number of Indicator Lights
1
Operator Material
Plastic
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Bezel Material
Plastic
Hazardous Location Specification
Not Rated
Mechanical Durability
10000000 cycles
Device Presentation
basic element
Ik Degree Of Protection
IK05 EN 50102
Bezel
Plastic
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment
TC
Ip Degree Of Protection
IP66 IEC 60529
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Marking
unmarked
Product Certifications
GL || LROS (Lloyds register of shipping) || UL Listed || CSA || BV || DNV
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Operator Additional Information
for insertion of legend
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Group Of Product
flush push with inser of legend
Overvoltage Category
class II IEC 60536
Head Type
standard
Operator Profile
red flush, unmarked
Shape Of Signaling Unit Head
square
Cap/Operator Or Lens Colour
red
Ambient Air Temperature For Operation
-40-70°C
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Device Short Name
ZB5
Product Or Component Type
head for illuminated push-button
Product Compatibility
universal LED
Ambient Air Temperature For Storage
-40-70°C

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Square Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
