  15. Illuminated Push Button Operator, 22 mm, White

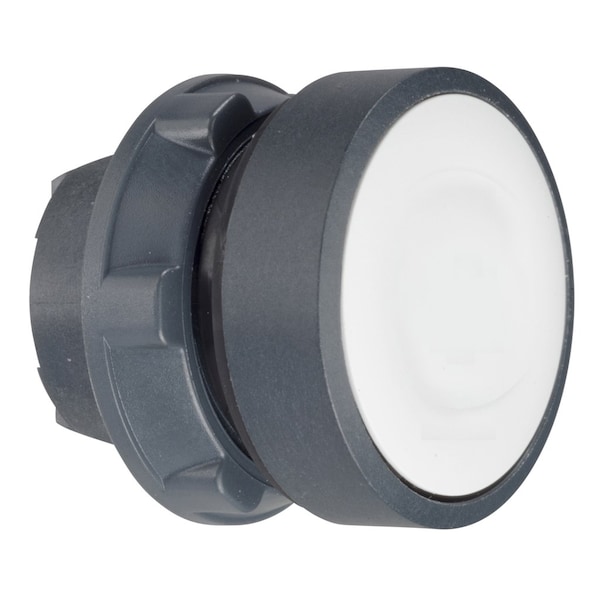

Schneider Electric Illuminated Push Button Operator, 22 mm, White ZB5AW31 - main

Illuminated Push Button Operator, 22 mm, White

  • Mfr # ZB5AW31

  • Zoro # G0443746

product price: $16.35
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW31
Zoro #
G0443746
UPC #
785901355144
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Cad Overall Depth
32 mm
Mounting Diameter
22 mm
Overall Height
1.14 in
Overall Width
1.14 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.26 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
White
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Module Type
No Lamp Module Included
NEMA Rating
13, 4X
IP Rating
IP66
Lamp Voltage
Dependent on Module Used
Lamp Module Voltage
Module Not Included
Basic Material
Plastic
Bezel
Plastic
Lamp Type
No Lamp Module Included
Type of Operator
Flush Button
Color
White
Bezel Material
Plastic
Number of Operators
1
Features
Snap-Fit Assembly, Visually Distinct at a Distance, Withstands Harsh Environments
Series
XB5
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection
IK05 EN 50102
Operator Profile
white flush, unmarked
Product Compatibility
BA 9s
Group Of Product
flush push BA9s
Electrical Composition Code
M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer || MF2 2 single front mounting BA 9s
Marking
unmarked
Device Short Name
ZB5
Overvoltage Category
class II IEC 60536
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Product Or Component Type
head for illuminated push-button
Device Presentation
basic sub-assemblies
Shape Of Signaling Unit Head
round
Operator Additional Information
with plain lens
Head Type
standard
Protective Treatment
TC
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
DNV || UL Listed || GL || CSA || LROS (Lloyds register of shipping) || BV
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-40-55°C
Mechanical Durability
10000000 cycles
Cap/Operator Or Lens Colour
white
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F
Hazardous Location Specification
Not Rated
Number of Indicator Lights
1
Operator Material
Plastic
Operating Temperature - Maximum
131 Degrees F
Product Type
Push Button Operators
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color White, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
