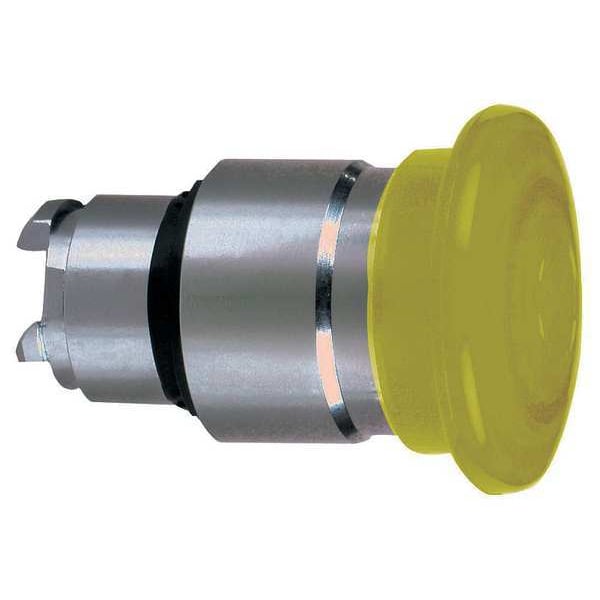

Illuminated Push Button Operator, 22 mm, Yellow

  • Mfr # ZB4BW453

  • Zoro # G0127091

product price:
$
20.99
/ea

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Orange
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB4BW453
Zoro #
G0127091
UPC #
785901506591
Country of Origin
Korea, Republic of

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Size
22 mm
Overall Height
1.57 in
Manufacturer Warranty Length
18 mo
Overall Depth
2.09 in
Overall Width
1.57 in
Cad Overall Width
40 mm
Mounting Diameter
22 mm
Cad Overall Depth
53 mm
Cad Overall Height
40 mm

Details

Item
Mushroom Head Push Button
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Illuminated
Head Color
Orange
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
IP Rating
IP66
Basic Material
Metal
Lamp Voltage
Dependent on Module Used
Lamp Module Voltage
Module Not Included
Lamp Type
No Lamp Module Included
Color
Yellow
Type of Operator
Flush Button
NEMA Rating
13, 4X
Number of Operators
1
Series
XB4
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated
Bezel Material
Metal
Operator Material
Metal
Operating Temperature - Minimum
-40 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Number of Indicator Lights
1
Lamp Module Type
No Lamp Module Included
Operating Temperature - Maximum
158 Degrees F
Operator Profile
orange mushroom Ø 40 mm, unmarked
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Head Type
standard
Device Presentation
basic sub-assemblies
Product Certifications
BV || GL || UL Listed || DNV || LROS (Lloyds register of shipping) || CSA
Device Short Name
ZB4
Protective Treatment
TH
Bezel
Chrome Plated Metal
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Mechanical Durability
10000000 cycles
Product Or Component Type
head for illuminated push-button
Overvoltage Category
class I IEC 60536
Ik Degree Of Protection
IK05 EN 50102
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Product Compatibility
universal LED
Ambient Air Temperature For Operation
-40-70°C
Shape Of Signaling Unit Head
round
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6

Description

Mushroom Head Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Yellow, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
