  15. Illuminated Push Button Operator, 22 mm, Yellow

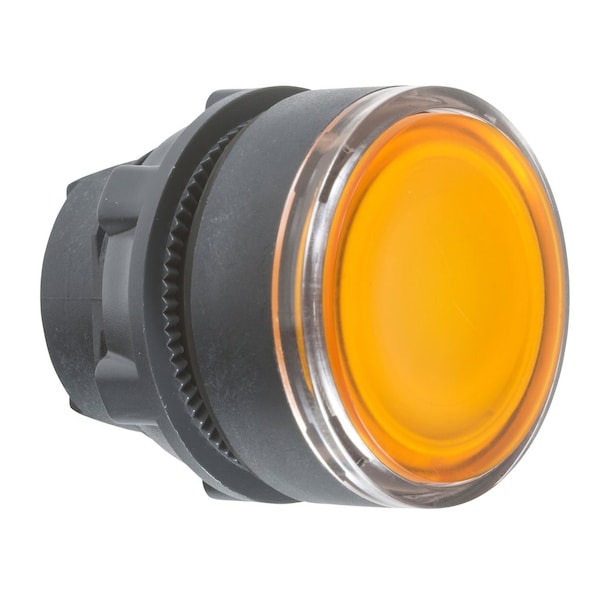

Schneider Electric Illuminated Push Button Operator, 22 mm, Yellow ZB5AW35 - main

Illuminated Push Button Operator, 22 mm, Yellow

  • Mfr # ZB5AW35

  • Zoro # G2571895

product price: $15.59
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW35
Zoro #
G2571895
UPC #
785901355175
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Mounting Diameter
22 mm
Cad Overall Depth
32 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Manufacturer Warranty Length
18 mo
Overall Height
1.14 in
Overall Width
1.14 in
Overall Depth
1.26 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
Orange
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Module Voltage
Module Not Included
IP Rating
IP66
Basic Material
Plastic
Type of Operator
Flush Button
Color
Yellow
Bezel
Plastic
NEMA Rating
13, 4X
Lamp Type
No Lamp Module Included
Lamp Module Type
No Lamp Module Included
Lamp Voltage
Dependent on Module Used
Bezel Material
Plastic
Series
XB5
Features
Snap-Fit Assembly, Withstands Harsh Environments
Number of Operators
1
Group Of Product
flush push BA9s
Head Type
standard
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Product Or Component Type
head for illuminated push-button
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Shape Of Signaling Unit Head
round
Cap/Operator Or Lens Colour
orange
Device Presentation
basic sub-assemblies
Mechanical Durability
10000000 cycles
Electrical Composition Code
M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer || MF2 2 single front mounting BA 9s
Device Short Name
ZB5
Marking
unmarked
Ik Degree Of Protection
IK05 EN 50102
Product Certifications
UL Listed || CSA || LROS (Lloyds register of shipping) || DNV || GL || BV
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Compatibility
BA 9s
Ambient Air Temperature For Storage
-40-70°C
Protective Treatment
TC
Overvoltage Category
class II IEC 60536
Operator Profile
orange flush, unmarked
Ambient Air Temperature For Operation
-40-55°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Operator Additional Information
with plain lens
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
131 Degrees F
Operator Material
Plastic
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Yellow, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
