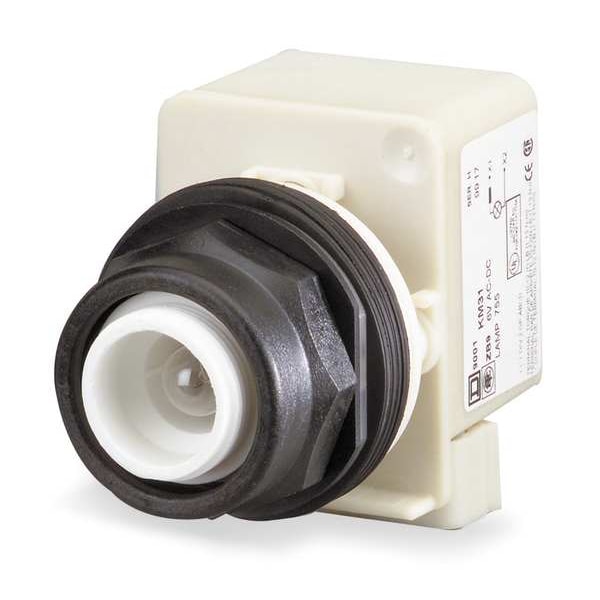

Schneider Electric Illuminated Push Button Operator, 30 mm, No Cap 9001SK2L1 - main

Illuminated Push Button Operator, 30 mm, No Cap

  • Mfr # 9001SK2L1

  • Zoro # G0407391

product price: $122.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9001SK2L1
Zoro #
G0407391
UPC #
785901793892
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo
Overall Depth
2.6 in
Overall Height
1.62 in
Overall Width
2.13 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR
Type of Operator
No Guard
Lamp Voltage
6V AC
IP Rating
IP64
Color
No Cap
Basic Material
Plastic
Lamp Module Voltage
120V AC
Lamp Type
Incandescent
Bezel
Plastic
Replacement Lamp
4VCW2
Lamp Module Type
Transformer
NEMA Rating
12, 3R, 4X
Bezel Material
Plastic
Series
9001SK
Features
Snap-Fit Assembly
Number of Operators
1
Bulb Base
BA 9s
Cap/Operator Or Lens Colour
without cap
[Us] Rated Supply Voltage
110 to 120 V
Operator Additional Information
without guard
Operator Profile
projecting
Device Short Name
9001SK
Contacts Type And Composition
without contact block
Light Source
incandescent bulb
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Shape Of Signaling Unit Head
octagonal
Product Certifications
CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR
Ip Degree Of Protection
IP64
Supply Frequency
50 to 60 Hz
Product Or Component Type
head for illuminated push-button
Light Block Supply
via integral transformer, via transformer 120 V AC 50/60 Hz || via transformer 110 V AC 50/60 Hz
Operator Material
Plastic
Product Type
Push Button Operators
Number of Indicator Lights
1
Lamp Voltage - Maximum
120 V AC
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Extended Push Button, 30 mm, Momentary, Type of Operator No Guard, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color No Cap, NEMA Rating 12, 3R, 4X, IP Rating IP64, Legend Not Applicable, Standards CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR, Includes Incandescent lamp, Features Snap-Fit Assembly
