- Item

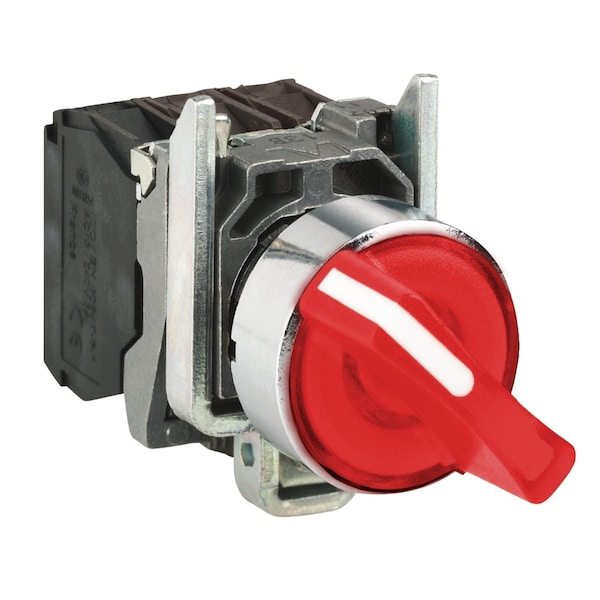

- Illuminated selector switch,metal,red,
- Type of Operator
- stay put
- Bezel Material
- chromium plated metal
- Standards
- IEC 60947-5-4, IEC 60947-1, JIS C8201-5-1, UL 508, IEC 60947-5-5, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-1
- Signalling Type
- steady
- Light Source
- universal LED
- Contact Operation
- slow-break
- Protective Treatment
- TH
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
- Contacts Material
- silver alloy (Ag/Ni)
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Ik Degree of Protection
- IK04 conforming to IEC 50102
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Nema Degree of Protection
- NEMA 13, NEMA 4X
- [Us] Rated Supply Voltage
- 110...120 V AC 50/60 Hz
- Shape of Signaling Unit Head
- round
- Mechanical Durability
- 1000000 cycles
- Operator Position Information
- 2 positions 90°
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Service Life
- 100000 h at rated voltage and 25°C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Surge Withstand
- 1 kV IEC 61000-4-5
- Operator Profile
- red standard handle
- Ambient Air Temperature For Operation
- -40-70°C
- Device Presentation
- complete product
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Bulb Base
- integral LED
- Contacts Type And Composition
- 1 NO + 1 NC
- Contacts Usage
- standard contacts
- Resistance To High Pressure Washer
- 7000000 Pa 55°C 0.1 m
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Operating Torque
- 0.14 N.m NO changing electrical state
- Device Short Name
- XB4
- Head Type
- standard
- Ambient Air Temperature For Storage
- -40-70°C
- Electrical Shock Protection Class
- class I IEC 60536
- Shape of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Positive Opening
- with IEC 60947-5-1 appendix K
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
- Supply Voltage Limits
- 100-132 V AC
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Ip Degree of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Electromagnetic Emission
- class B IEC 55011
- Product or Component Type
- illuminated selector switch
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Range of Product
- Harmony XB4
- Current Consumption
- 14 mA
- Terminals Description Iso N°1
- (21-22)NC, (13-14)NO
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Fixing Collar Material
- zamak
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Product Certifications
- UL || BV || GL || LROS (Lloyds register of shipping) || CSA || DNV
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Shape Of Signaling Unit Head
- round
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Product Or Component Type
- illuminated selector switch
- Type Of Operator
- stay put
- Ik Degree Of Protection
- IK04 IEC 50102
