  7. Illuminated selector switch head, Harmony 9001K, metal, long handle, amber, 30mm, 2 positions, stay put, LED yellow, 24-28V

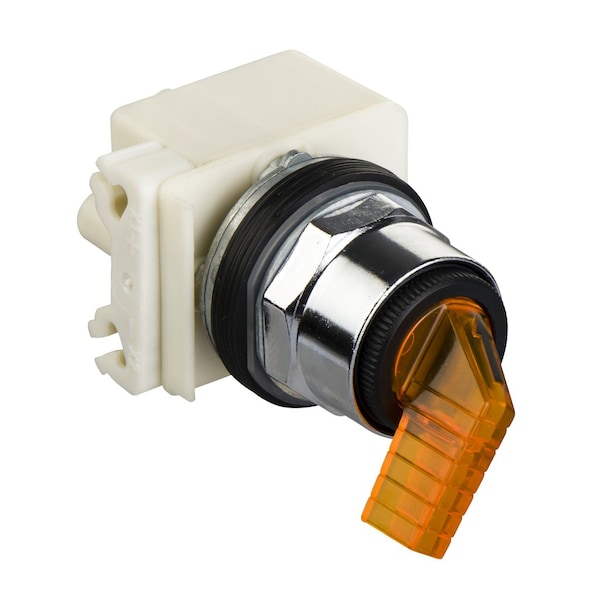

Schneider Electric Illuminated selector switch head, Harmony 9001K, metal, long handle, amber, 30mm, 2 positions, stay put, LED yellow, 24-28V 9001K11J35LYFA - main

Illuminated selector switch head, Harmony 9001K, metal, long handle, amber, 30mm, 2 positions, stay put, LED yellow, 24-28V

  • Mfr # 9001K11J35LYFA

  • Zoro # G3301344

product price:  $164.99
/ea
Free Shipping & Returns

Key Features

Bezel Material
metal
Standards
EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1
[Us] Rated Supply Voltage
24 V AC/DC
Light Block Supply
direct
Product Or Component Type
head for illuminated selector switch
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K11J35LYFA
Zoro #
G3301344
UPC #
-
Country of Origin
Mexico

Dimensions

Mounting Diameter
30 mm

Details

Item
Illuminated selector switch 0 30 - amber
Bezel Material
metal
Standards
EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1
[Us] Rated Supply Voltage
24 V AC/DC
Light Block Supply
direct
Product Or Component Type
head for illuminated selector switch
Shape Of Signaling Unit Head
octagonal
Product Certifications
UL 508 || NEMA
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Device Short Name
9001K
Mechanical Durability
500000 cycles
Operator Profile
amber long handle
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Protective Treatment
TC
Type Of Operator
stay put
Shock Resistance
50 gn IEC 60068-2-27
Bulb Base
BA 9s
Operator Position Information
2 positions
Ip Degree Of Protection
IP66 IEC 60529
Ambient Air Temperature For Operation
-25-70°C
Device Presentation
basic element
Ambient Air Temperature For Storage
-40-70°C
Light Block Colour
amber
Light Source
LED
Contacts Type And Composition
without contact block
Product Compatibility
9001KA2 side 1 or 2
Electrical Shock Protection Class
class II IEC 61140
Light Source Colour
yellow
Range of Product
Harmony 9001K
Cam Profile
5

Description

Illuminated selector switch 0 30 - amber
