  15. IllumPushButton, FullVolt, Green, 2NO/2NC

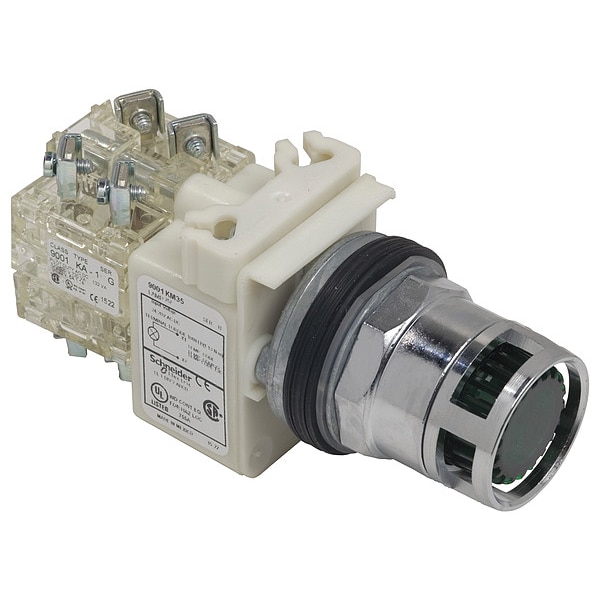

Schneider Electric IllumPushButton, FullVolt, Green, 2NO/2NC 9001K3L35GH2Y238 - main

IllumPushButton, FullVolt, Green, 2NO/2NC

  • Mfr # 9001K3L35GH2Y238

  • Zoro # G3459252

product price: $246.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K3L35GH2Y238
Zoro #
G3459252
UPC #
785901836339
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Illuminated Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
REACH, RoHS, WEEE
Number of Operators
1
Contact Rating
10A @ 600V AC
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Legend/Background Color
No Legend
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Bezel Material
Metal
Series
9001K
Lamp Type
LED
Contact Form
2NO/2NC
Lamp Module Type
Full Voltage
IP Rating
IP20
Product Type
Push Button Operators
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operating Temperature - Minimum
-22 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
0
Lamp Voltage - Maximum
28 V AC/DC
Operator Material
Metal
Operating Temperature - Maximum
140 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Operator Voltage Rating - Maximum
600 V AC

Description

Illuminated Push Button, 30 mm, Momentary Action, Head Material Metal, Contact Form 2NO/2NC, Contact Rating 10A @ 600V AC, Number of Operators 1, IP Rating IP20, Legend Not Applicable, Legend/Background Color No Legend, Standards REACH, RoHS, WEEE, Terminal Connection Screw Clamp
