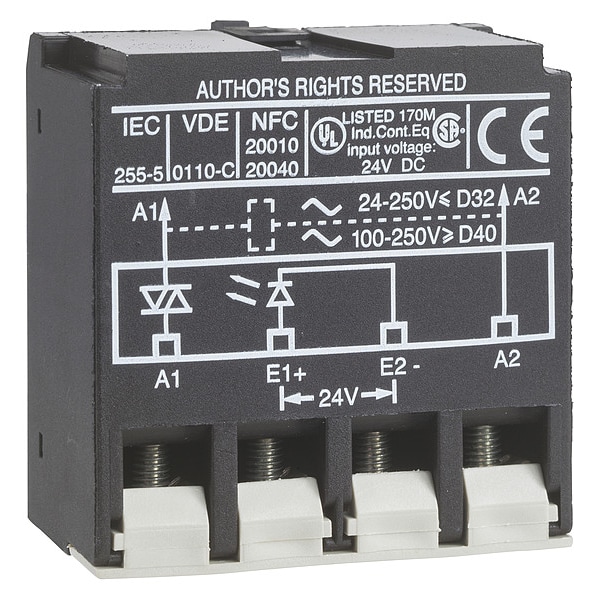

Schneider Electric Integral Starter Interf Mod 250Vac 18A LA4DWB - main

Integral Starter Interf Mod 250Vac 18A

  • Mfr # LA4DWB

  • Zoro # G0653497

product price: $97.15
/ea
Free Shipping & Returns

Key Features

[Ue] Rated Operational Voltage
control circuit 24...250 V AC
Height
19 mm
Device Short Name
LA4D
Electrical Durability
20 Mcycles 240 V
[Us] Rated Supply Voltage
24 V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LA4DWB
Zoro #
G0653497
UPC #
785901261001
Country of Origin
Tunisia

Dimensions

Height
19 mm

Details

Item
Integral Starter Interf Mod 250Vac 18A
[Ue] Rated Operational Voltage
control circuit 24...250 V AC
Device Short Name
LA4D
Electrical Durability
20 Mcycles 240 V
[Us] Rated Supply Voltage
24 V DC
Current State 0 Guaranteed
<= 2 mA
Local Signalling
LED indicator
Ip Degree Of Protection
IP2X conforming to IEC 60529
Voltage State 0 Guaranteed
< 2.4 V
Connections - Terminals
control circuit connector 1 1-2.5 mm²flexible with cable end || control circuit connector 1 1-2.5 mm²flexible without cable end || control circuit connector 1 1-2.5 mm²solid with cable end || control circuit connector 1 1-2.5 mm²solid without cable end || control circuit connector 2 1-2.5 mm²flexible with cable end || control circuit connector 2 1-2.5 mm²flexible without cable end || control circuit connector 2 1-2.5 mm²solid with cable end || control circuit connector 2 1-2.5 mm²solid without cable end
Standards
IEC 60255-5
Technology Type
solid state
Range
TeSys
Mounting Mode
top mounted
Heat Dissipation
0.4-0.4 W control circuit
[Ith] Conventional Free Air Thermal Current
8 A 50°C
Poles Description
3P
Permissible Ambient Air Temperature Around The Device
-25-70°C
[Ui] Rated Insulation Voltage
250 V - control circuit IEC 60947-5-1
Product Certifications
CSA || UL
Protection Type
built-in by diode
Ambient Air Temperature For Operation
-25-55°C
Product Or Component Type
interface module
Immunity To Microbreaks
1 ms
Control Circuit Voltage Limits
5...30 V at 20°C DC
Voltage State 1 Guaranteed
5 V
Ambient Air Temperature For Storage
-40-80°C
Product Compatibility
LC1D09...D115
Current Consumption
8.5...15 mA 20°C

Description

Integral Starter Interf Mod 250Vac 18A
